SETTING CHANGES

iTDC

p.105

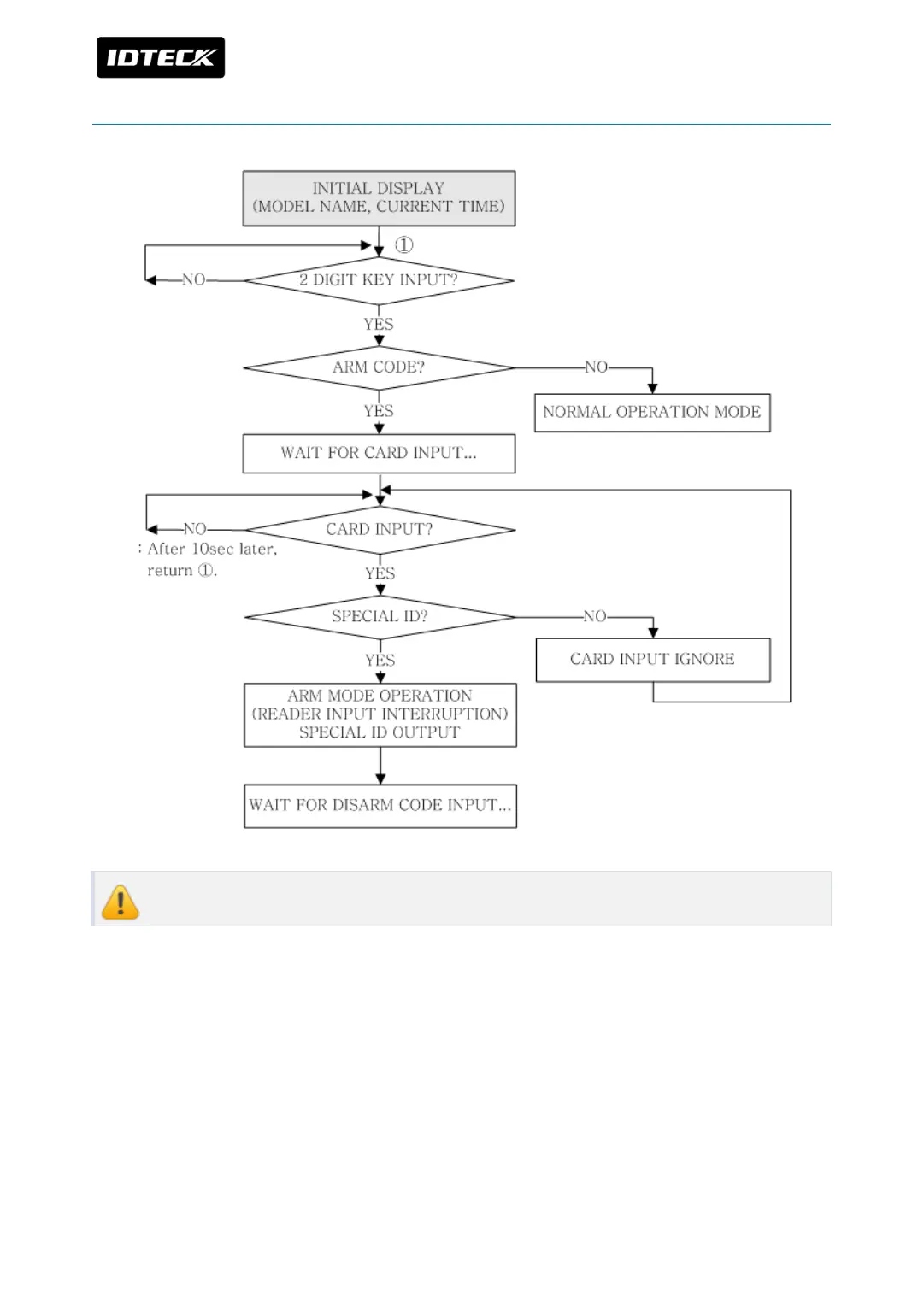

ARM CODE PROCESS DETAILS

ARM CODE has to be different from DISARM CODE.
