PREPARATION OF INSTALLATION
iTDC
p.23

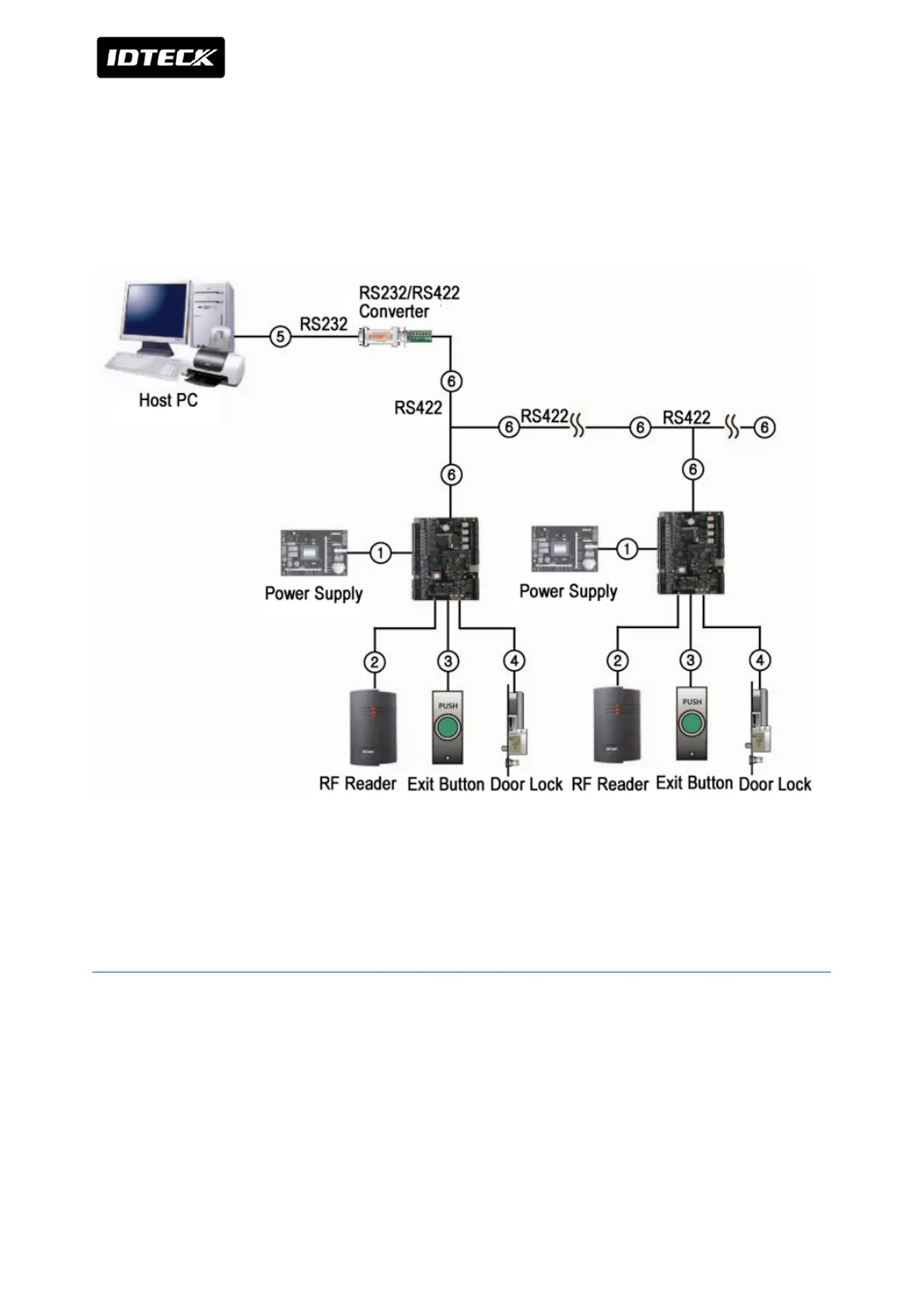

1.2 CONFIGURATION FOR RS422 COMMUNICATION.
Configuration for RS422 communication is same as figure below. Please refer to more
information of applicable cable in “2 RECOMMENDED CABLE TYPE AND PERMISSIBLE
LENGTH OF CABLE”.
1.3 CONFIGURATION FOR TCP/IP COMMUNICATION
There are two kinds of connection type of TCP/IP communication.
TCP/IP CONFIGURATION OF DIRECT COMMUNICATION
All connecting iTDC/iTDC-SRs equip internal TCP/IP module (IIM100) then each of them are
connected to HUB to link Host PC and LAN. Please refer to more information of applicable
cable in “RECOMMENDED CABLE TYPE AND PERMISSIBLE LENGTH OF CABLE”.
To Next Page
