PREPARATION OF INSTALLATION

iTDC

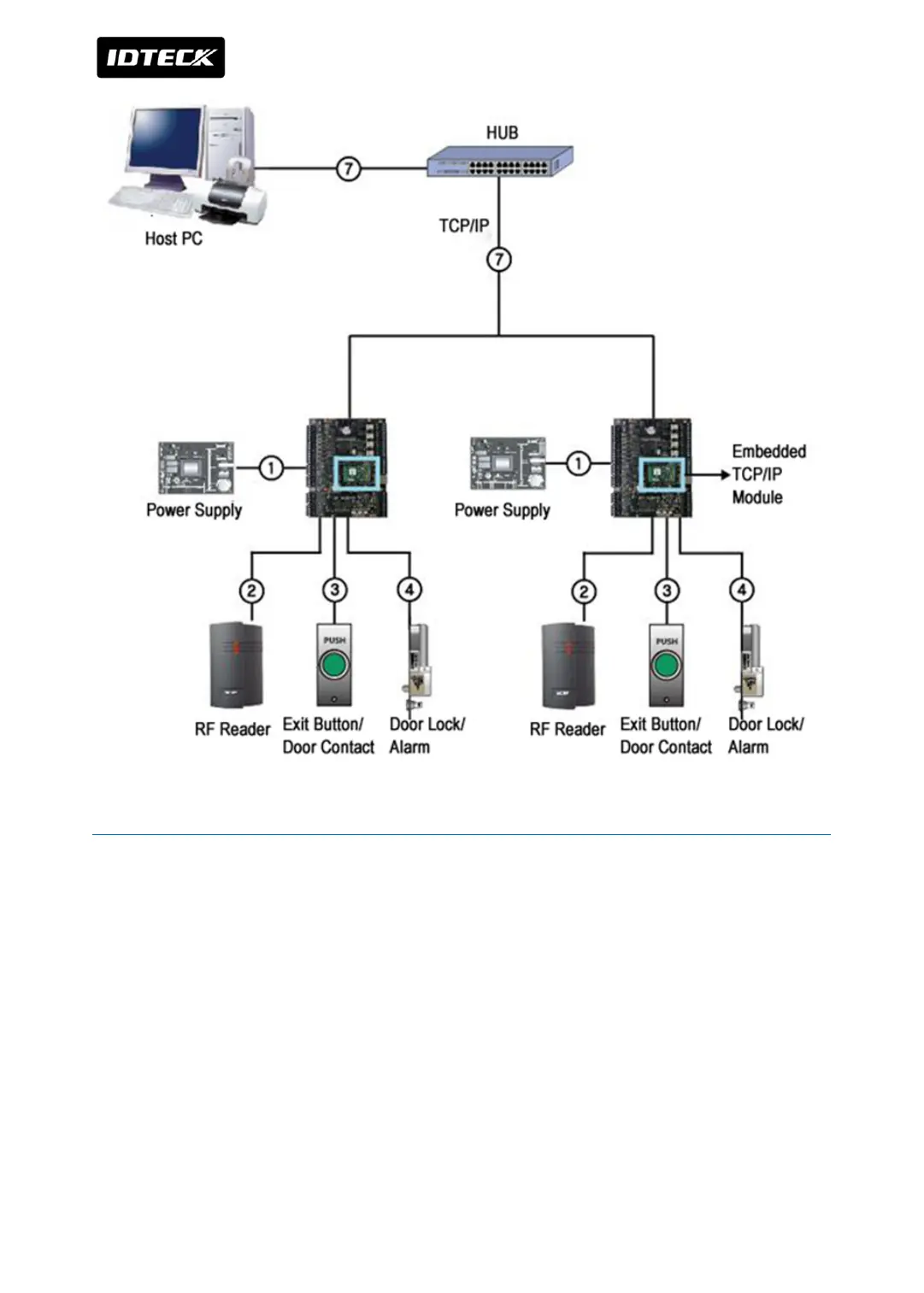

CONFIGURATION OF INSTALLATION FOR TCP/IP BYPASS COMMUNICATION.

Internal TCP/IP module (IIM100) is equipped on a iTDC/iTDC-SR then it communicates LAN

with Host PC. The iTDC/iTDC-SR communicates RS422 with another iTDC/iTDC-SR. Please

refer to more information of applicable cable in “RECOMMENDED CABLE TYPE AND

PERMISSIBLE LENGTH OF CABLE”.
