IDTECK iTDC - Recommended Cable Type and Permissible Length of Cable

PREPARATION OF INSTALLATION
iTDC
p.25

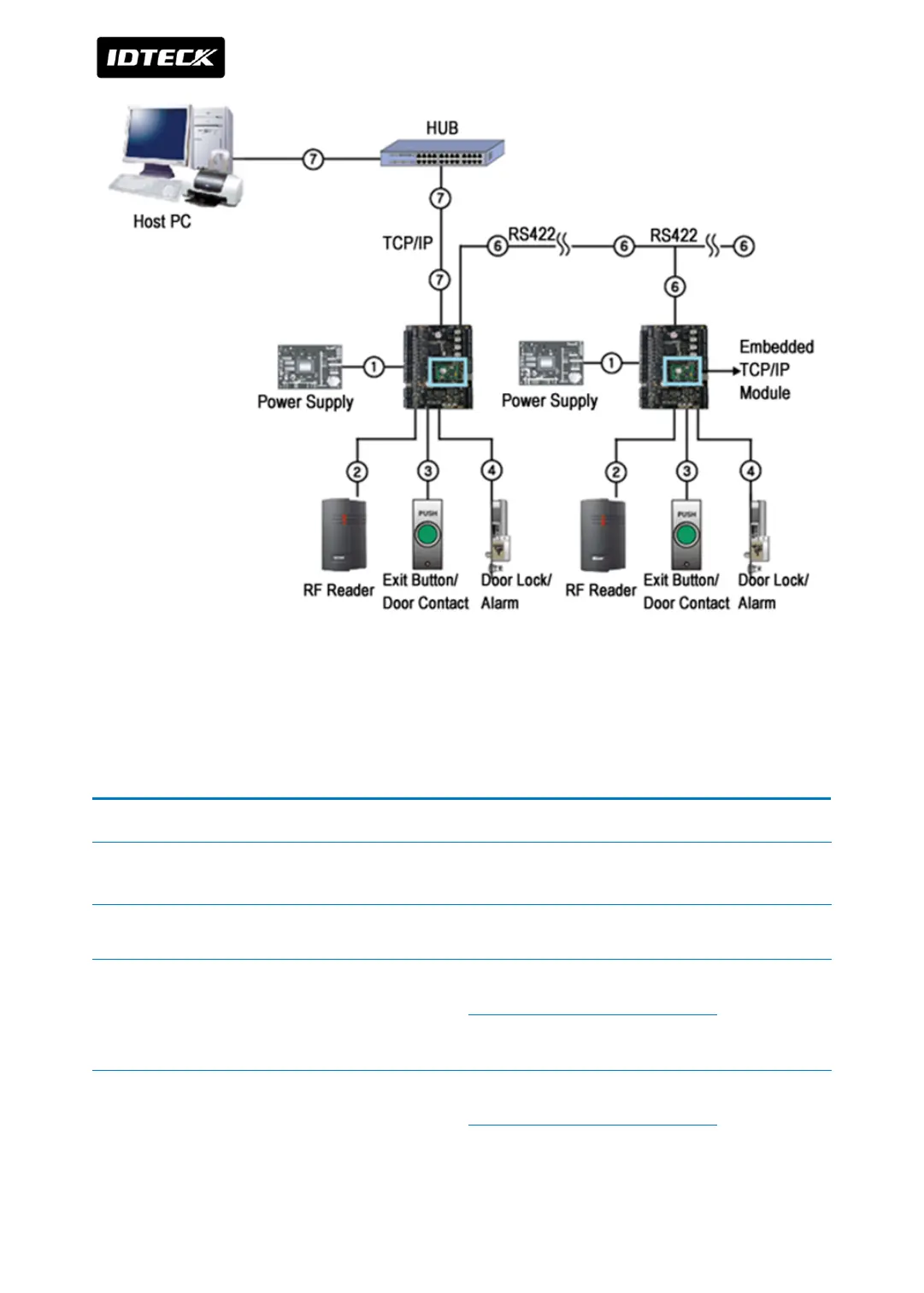

2 RECOMMENDED CABLE TYPE AND PERMISSIBLE
LENGTH OF CABLE
Reference Description Cable Specification Maximum
Distance
1 iTDC/iTDC-SR Power (DC12V)
DC Power ↔ iTDC
Belden #9409, 18 AWG
2 conductor, unshielded
30m
2 Reader (Power and Data)
Extra Reader ↔ iTDC/iTDC-SR
Belden #9512, 22 AWG
4 conductor, shielded
150m
Belden #9514, 22 AWG
8 conductor, shielded
3 Door Contact
Exit Button
Sensor Input
Input ↔ iTDC/iTDC-SR
Belden #9512, 22 AWG
4 conductor, shielded
300m
Belden #9514, 22 AWG
