PREPARATION OF INSTALLATION

iTDC

p.29

3.4 EQUIPMENT OF LCD MODULE

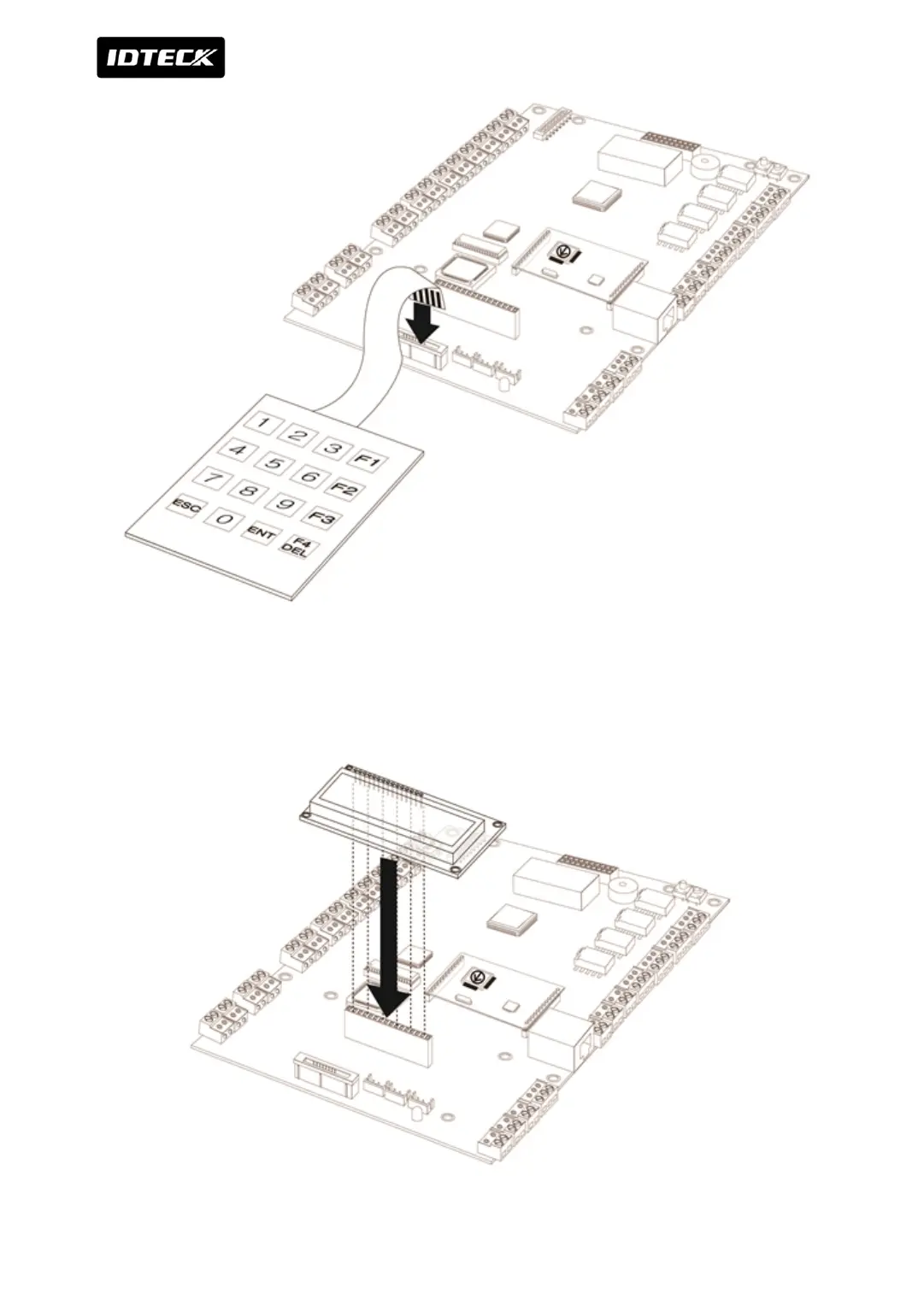

To use optional LCD module, connect the keypad to keypad port as figure below.
