SETTING CHANGES

iTDC

p.107

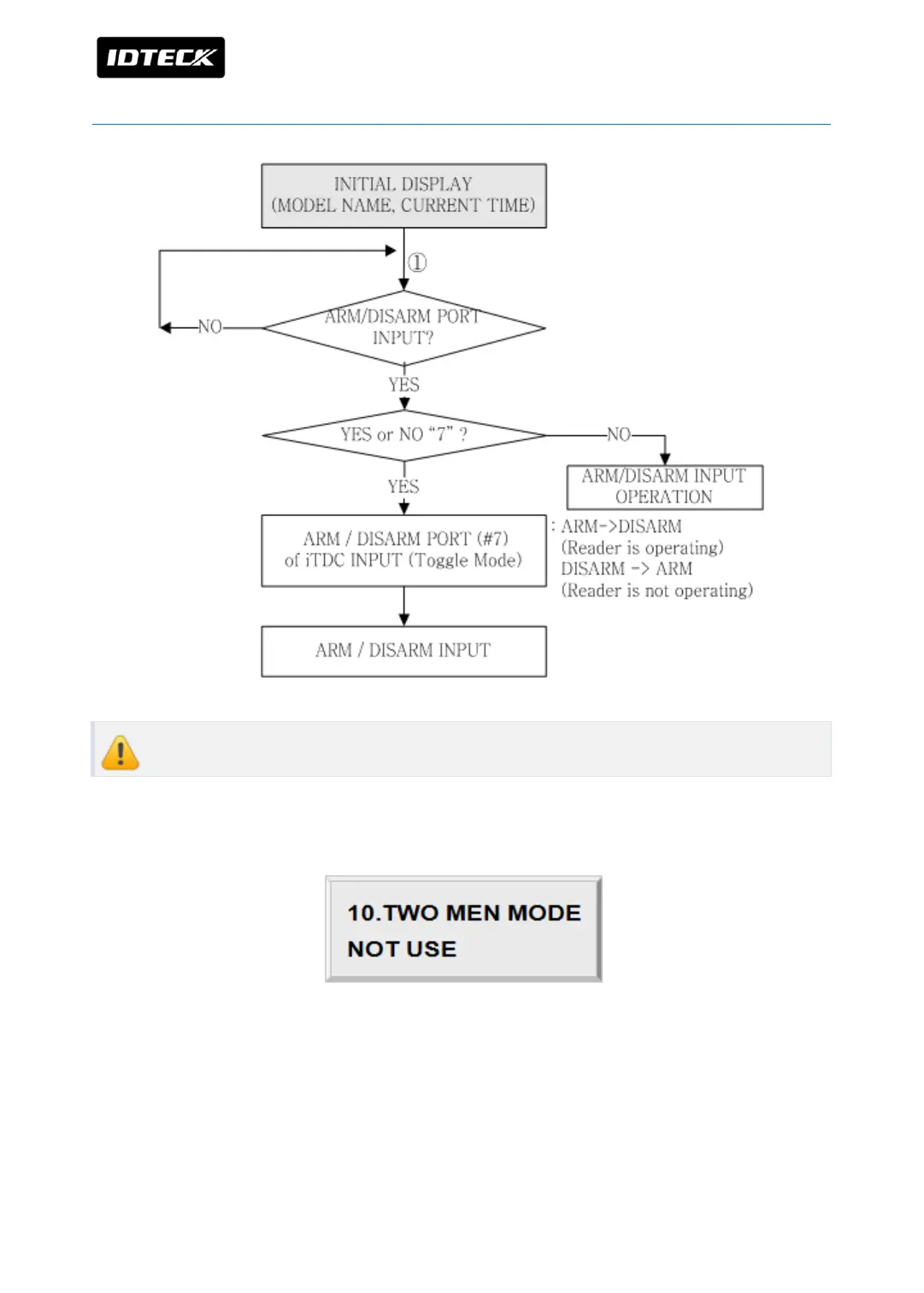

ARM / DISARM INPUT PROCESS DETAILS

ARM/DISARM Input Port is fixed as setting value of Input # 7.

3.10 2 MEN OPERATION MODE SETTING

Set whether to use “TWO MEN MODE” or not.

Default value is set to “NOT USE”.
