PREPARATION OF INSTALLATION

p.22

1 CONFIGURATION DEPENDING ON TYPE OF

COMMUNICATION

1.1 CONFIGURATION FOR RS232 COMMUNICATION

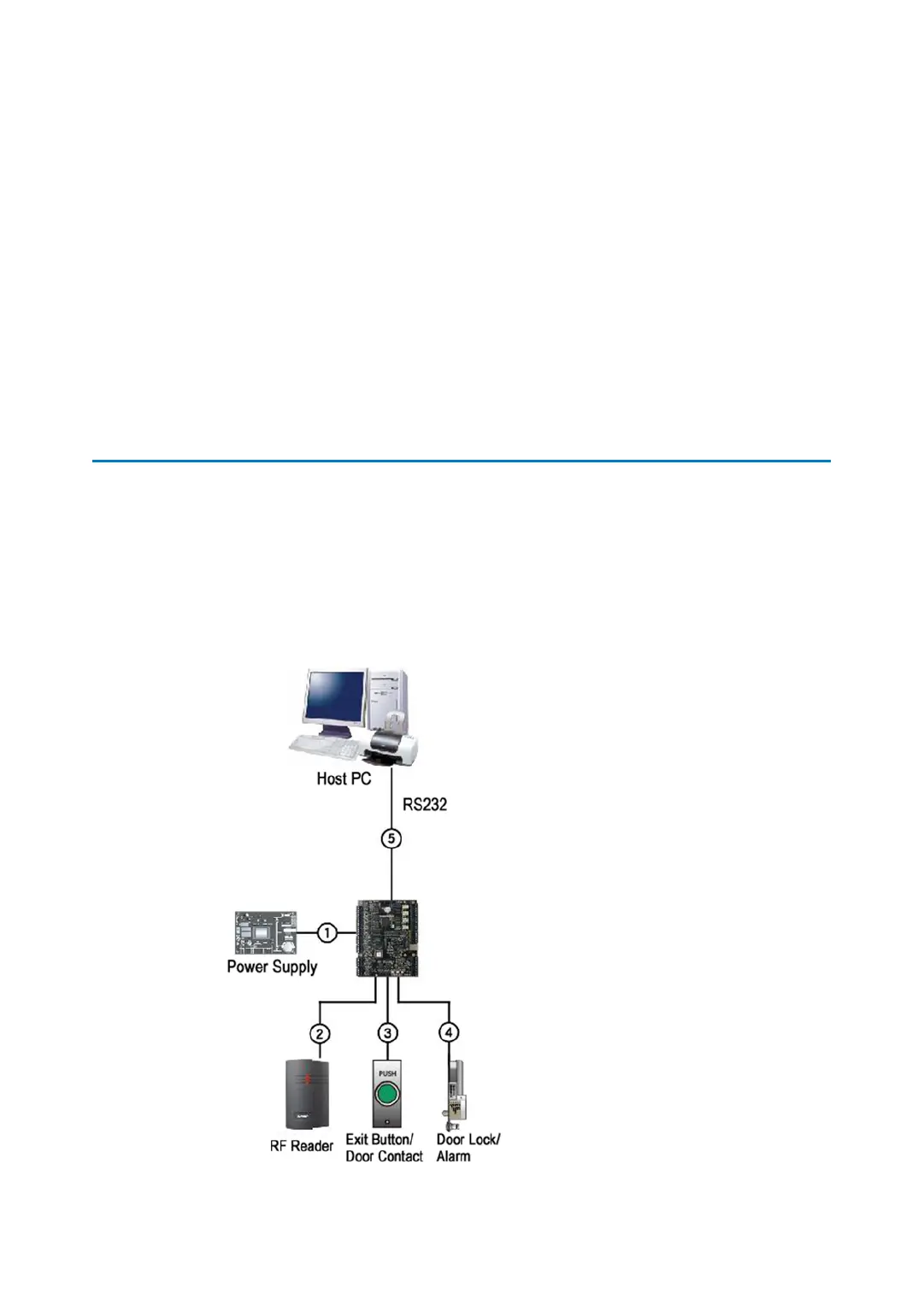

Configuration for RS232 communication is same as figure below. Please refer to more

information of applicable cable in “RECOMMENDED CABLE TYPE AND PERMISSIBLE LENGTH

OF CABLE”.
