COMMUNICATION WIRING

iTDC

p.57

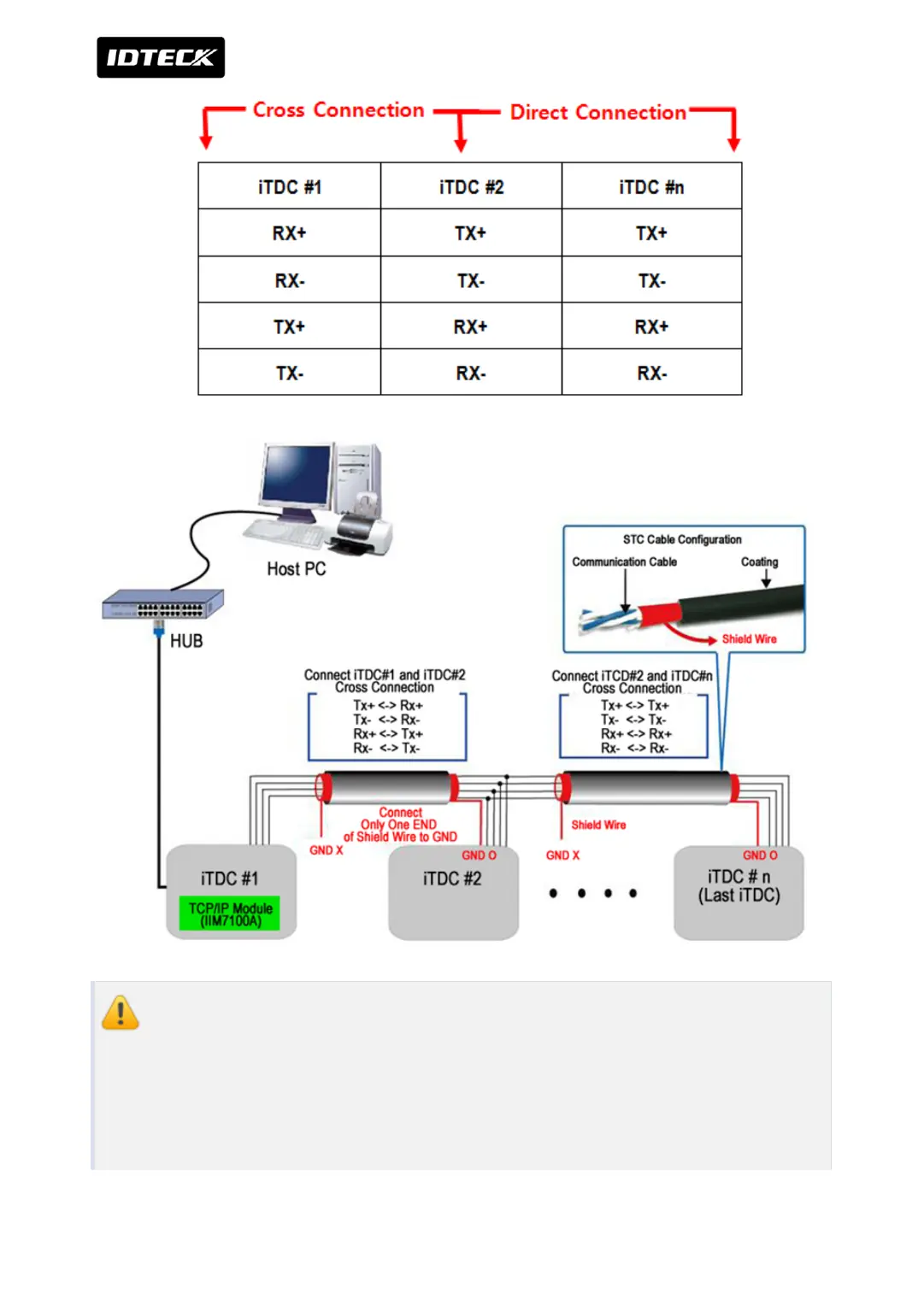

1. Recommended communication cable

STP (Shielded Twisted Pair) cable is recommended to wire RS422 communication.

2. GND Wiring
