COMMUNICATION WIRING

iTDC

p.59

●

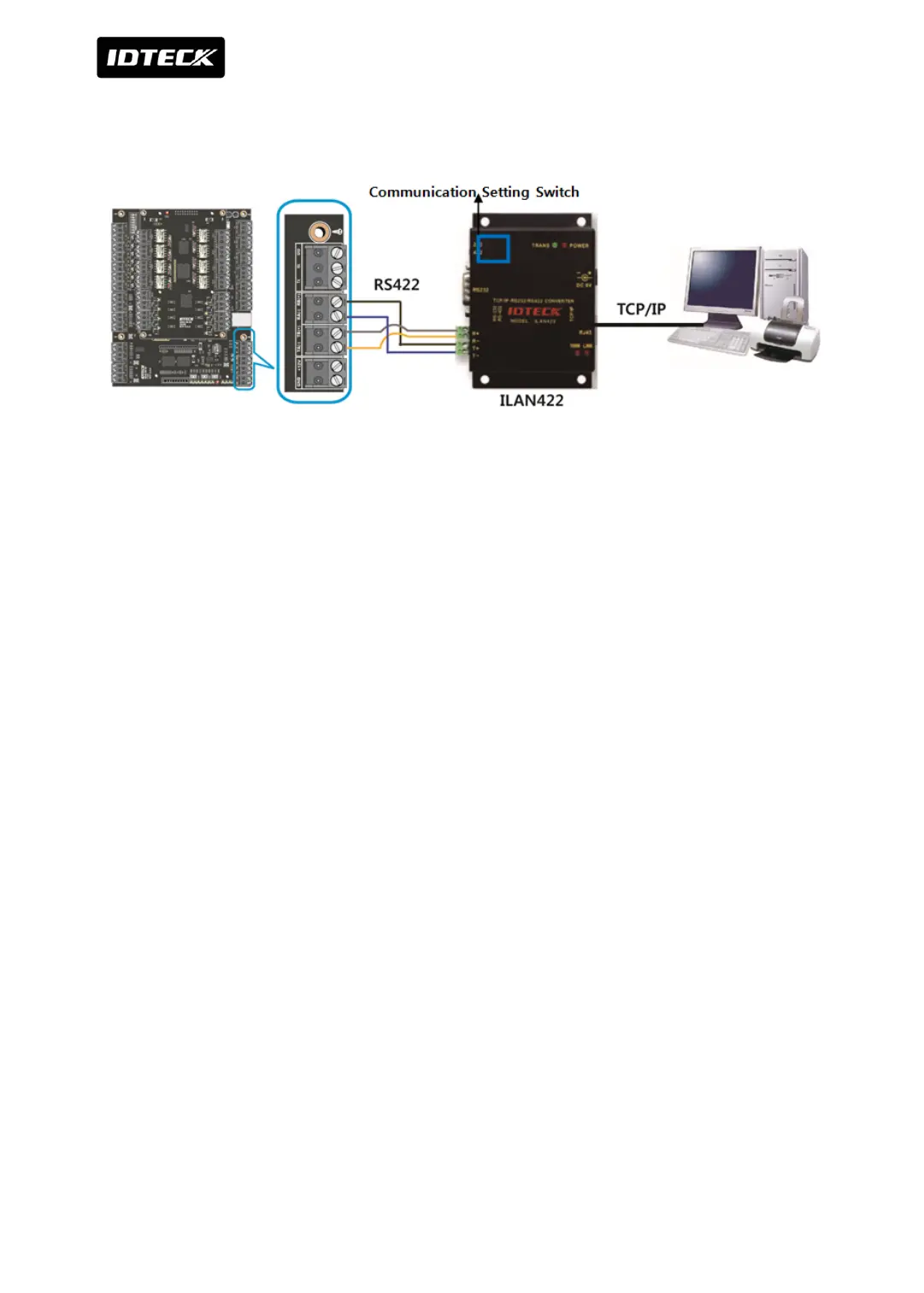

Connect RX+ of iTDC/iTDC-SR RS422 port to TX+ of ILAN422.

●

Connect RX- of iTDC/iTDC-SR RS422 port to TX- of ILAN422.
