Page 22 Setup Manual
B.1.1 Unpacking the Scanner from the Transport Box
The scanner is placed in the transport box on a wooden slide-in with specially formed
foam plastic elements.
The transport box interior is divided into two parts by a thin wooden plate below the
camera head. The camera head is protected by a plastic bag and by foam plastic pads
(Picture 2, item #2) around the cut-out in the separating wooden plate.
Important: For safety reasons and because of the scanner’s weight (77 kg / 170 lbs.)
the following steps should be done by two persons.
Pull the scanner together with the wooden slide-in out of the transport box.
After pulling out the scanner, the accessory box (Picture 2, item #1) is visible.

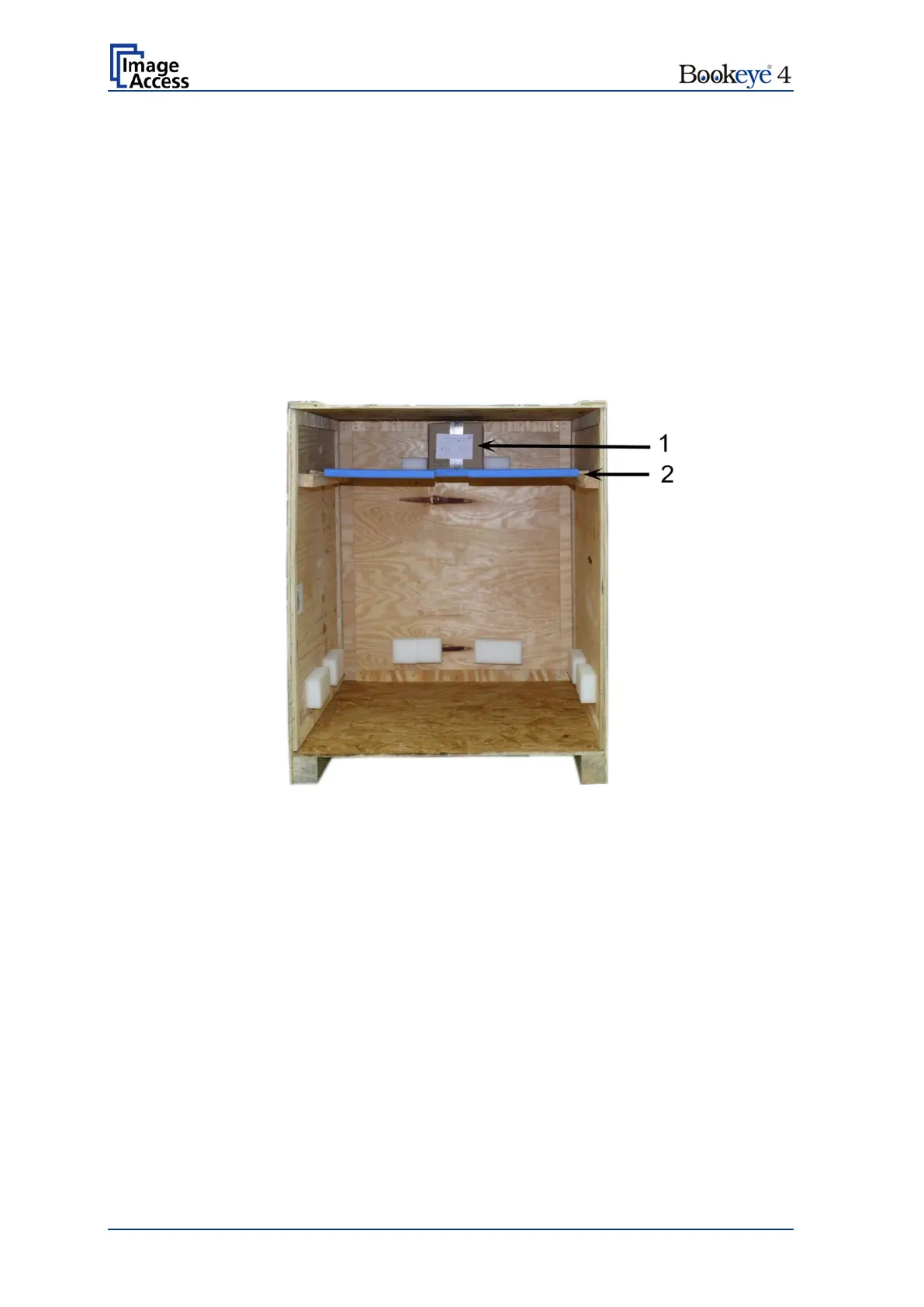

Picture 2: Inside view of transport box
