C.2.2 Laser Check

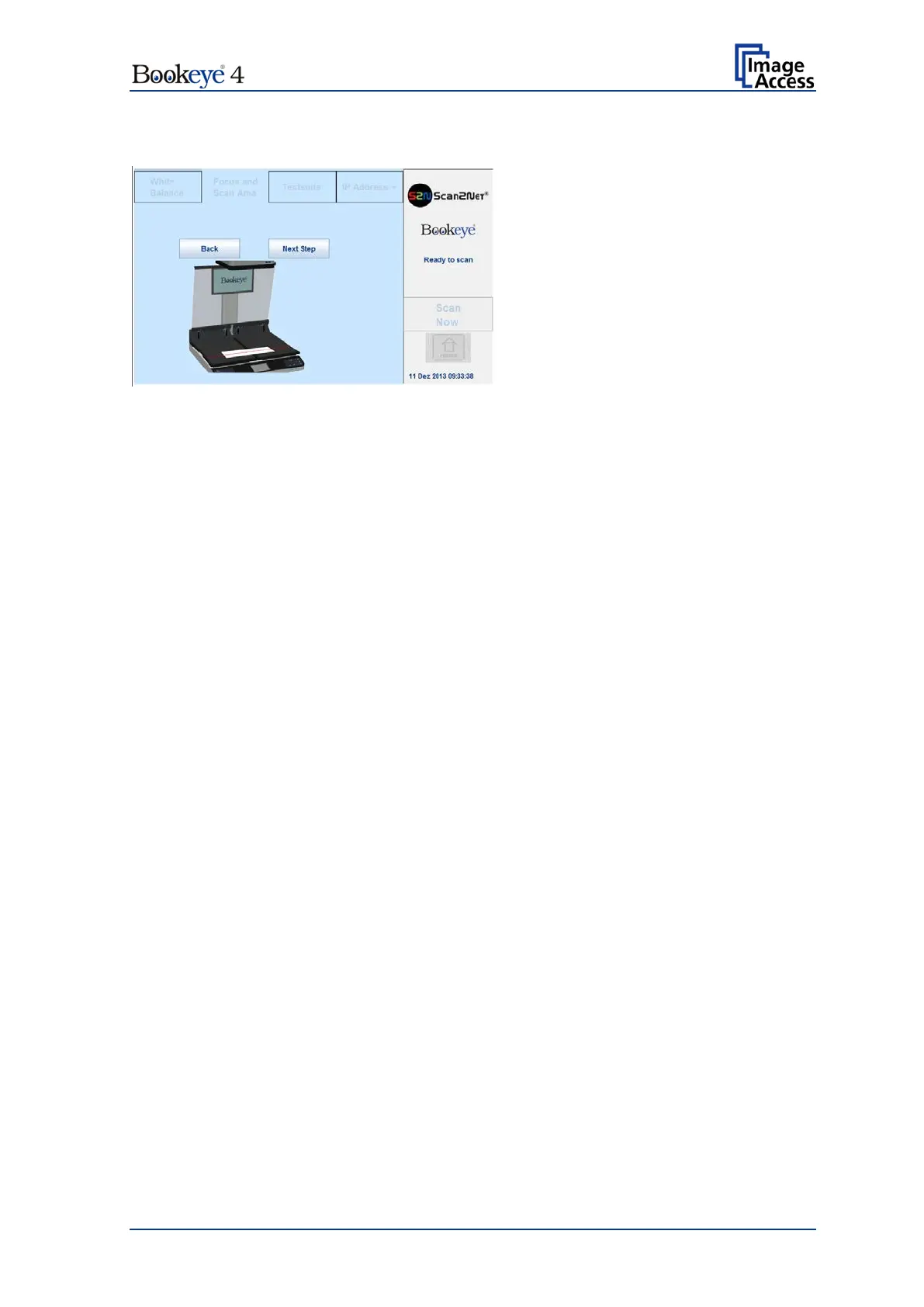

Picture 12: Reference target position
The book cradles must be closed. The reference target BE4-WA-V1-A must be placed on
the book cradles as shown in the picture.
The markers in the middle of the long side of the reference target should be covered by
the vertical laser line. To identify the marker on one side it is marked with Laser Check.
Touching the Next Step button starts the measurement. The laser will be switched off and
on during the measurement. During the measurement, a small clock icon is displayed on
the touchscreen.
The results of the measurement are displayed on the touchscreen.
Touching the Back button returns to the Focus and Scan Area menu.
