12. THE OMNI SMART PROGRAMMER SCREEN

When the OMNI Smart Programmer software is started, it displays the main screen, which

includes the following:

• Title Bar

• ECG Window

• View Bar

• ECG Statistics Bar

• Tool Bar

• Device Bar

• Log Bar

• Programming Bar

• Parameter Conflict Bar

• Task Bar

• Status Bar

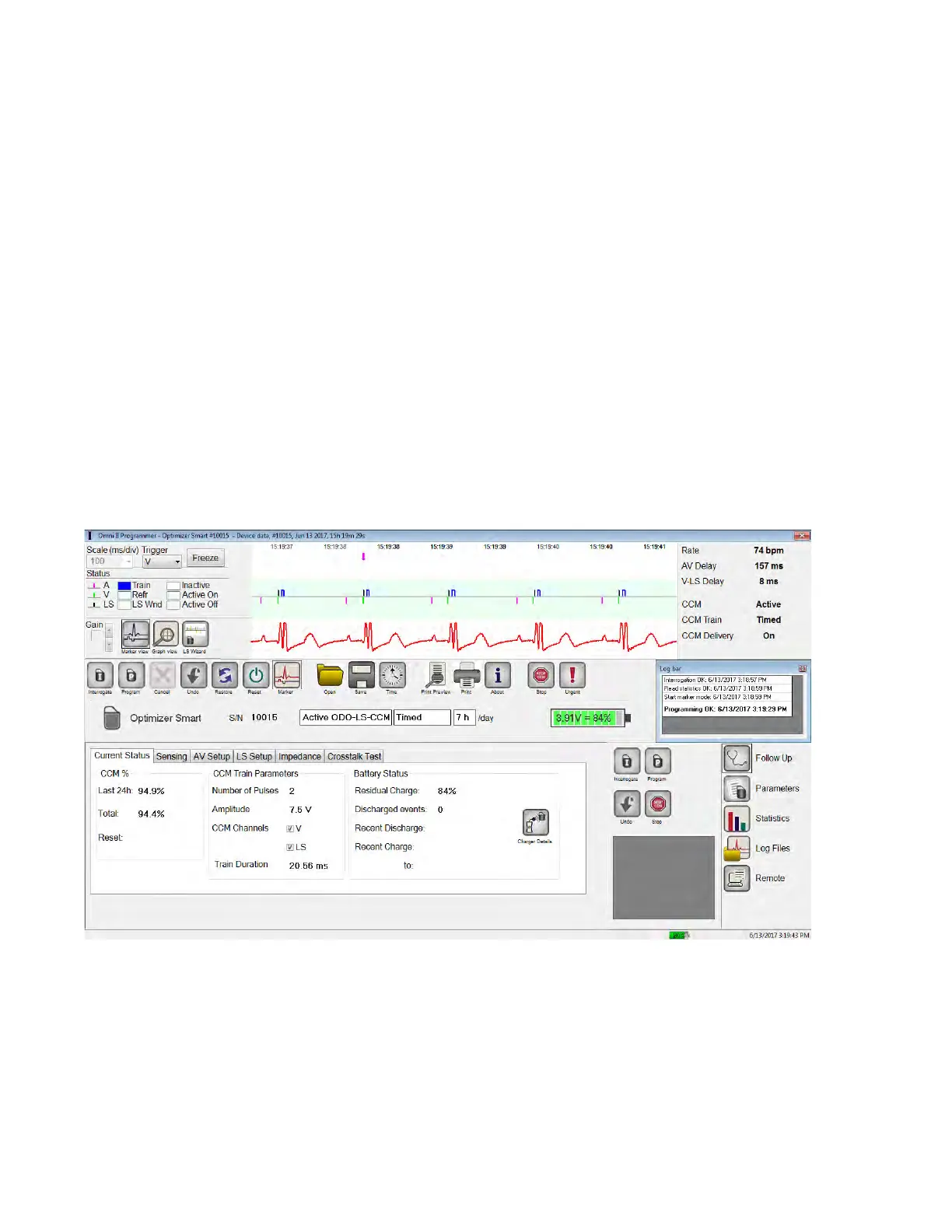

Figure 8: OMNI Smart Programmer Main Screen
