34. OPTIMIZER MINI CHARGER
34.1 Description
The OPTIMIZER Mini Charger is a charger powered by a rechargeable battery. The
system includes a permanently attached charging wand. The OPTIMIZER Mini Charger
is supplied with an AC Adapter (Cell Con Battery Charger; Input: 110–240VAC, 50-
60Hz, 0.3A; Output: 8.4V, 1.3A) to recharge the internal battery. The charger is a Class I,
Type BF device, classified as ordinary equipment suitable for continuous operation, with
short-time loading, within the patient environment. The charger is designed to permit
recharging with only minimal patient interaction.
Warning: Failure to recharge the OPTIMIZER Smart IPG as required may cause it to
shut down when the battery is depleted, suspending CCM therapy.

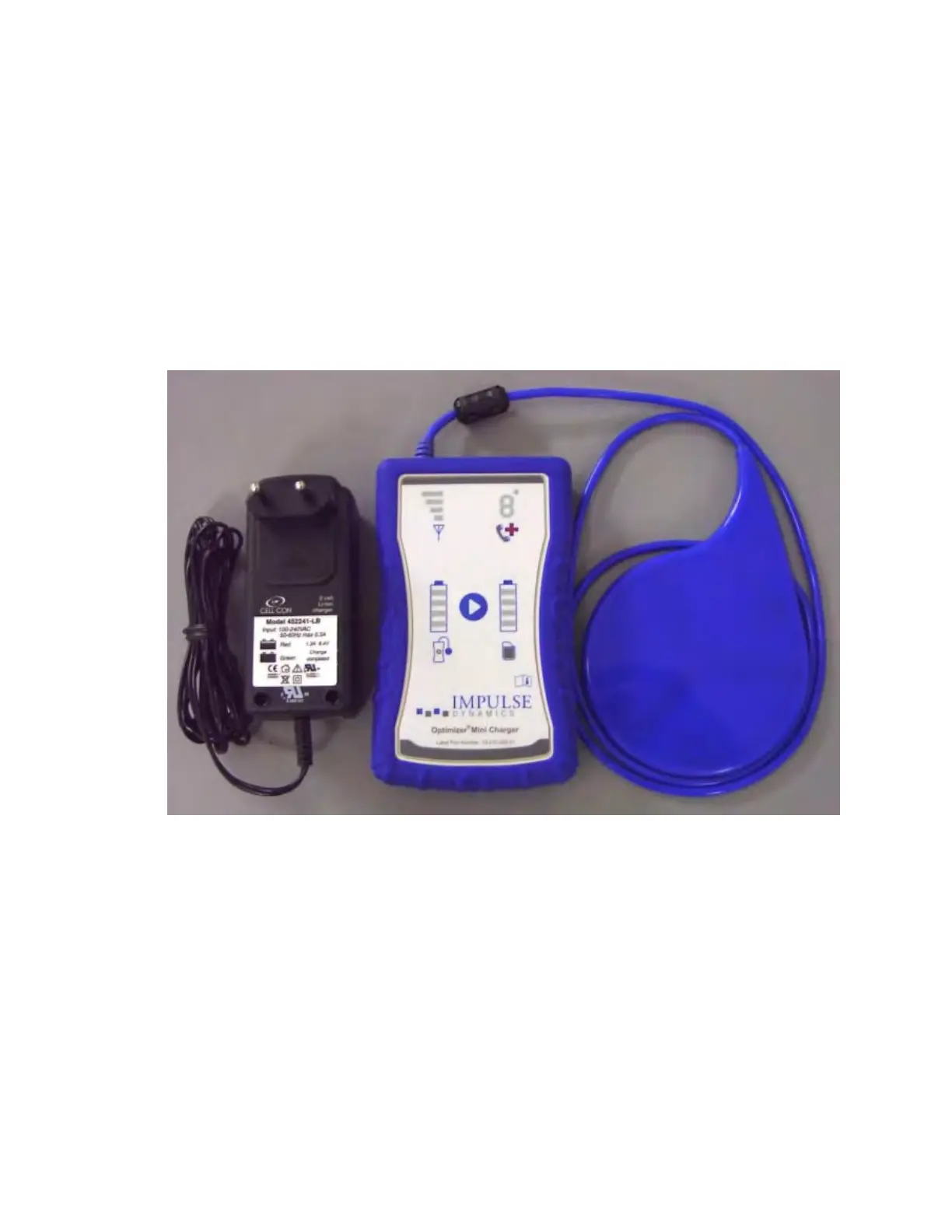

Figure 62: OPTIMIZER Mini Charger with AC Adapter
34.1.1 Charger System Components
The OPTIMIZER Mini Charger System consists of following components:
• OPTIMIZER Mini Charger (with attached charging wand) – used to
charge the OPTIMIZER Smart IPG.
• AC Adapter – used to charge the internal battery of the OPTIMIZER Mini
Charger and isolate it from the mains.
• Carrying Case – used to transport the OPTIMIZER Mini Charger
• Patient belt – (optional accessory) used to hold the charger in its pocket
while the OPTIMIZER Smart IPG is being charged. (Manufacturer: Spider
Black Widow Holster)
