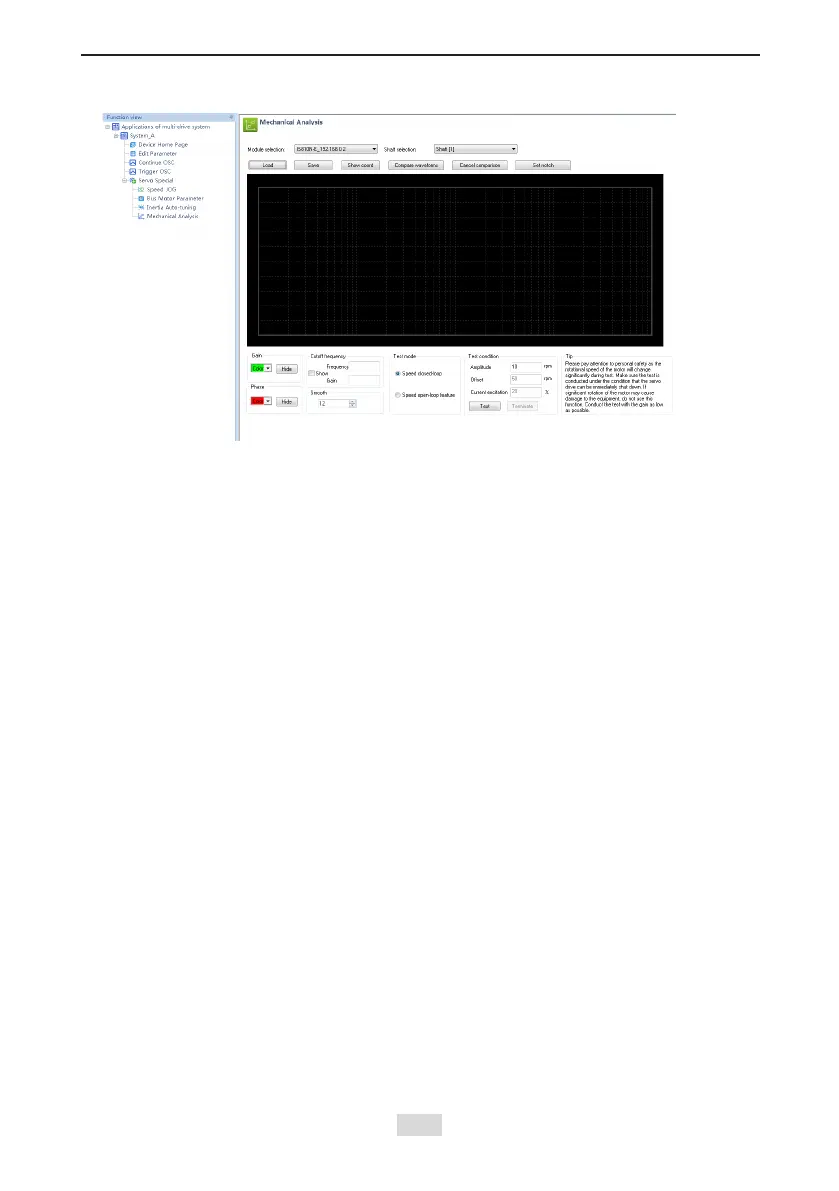

4. Mechanical Analysis
Function Description: The
Mechanical Analysis
function is mainly used to analyze
speed open-loop frequency and closed-loop frequency features of each axis. Select a
corresponding axis number in the
Shaft selection
drop-down box. If you select
Speed
closed-loop
, enter a speed excitation amplitude (10 RPM by default). When this axis is in
rdy state, click
Test
to start an analysis of the speed closed-loop frequency feature. Wait
until the data transmission progress bar is complete. The speed closed-loop frequency
features of this axis is displayed in the drawing area. If you select
Speed open-loop
feature
, enter a current excitation amplitude (20% by default). When this axis is in rdy
state, click
Test
to start an analysis of the speed open-loop frequency feature. Wait until
the data transmission progress bar is complete. Thespeed open-loop frequency feature of
this axis is displayed in the drawing area.
