IS810N-INT Series Servo System User Manual (Brief)Chapter 2 Product Information
- 27 -

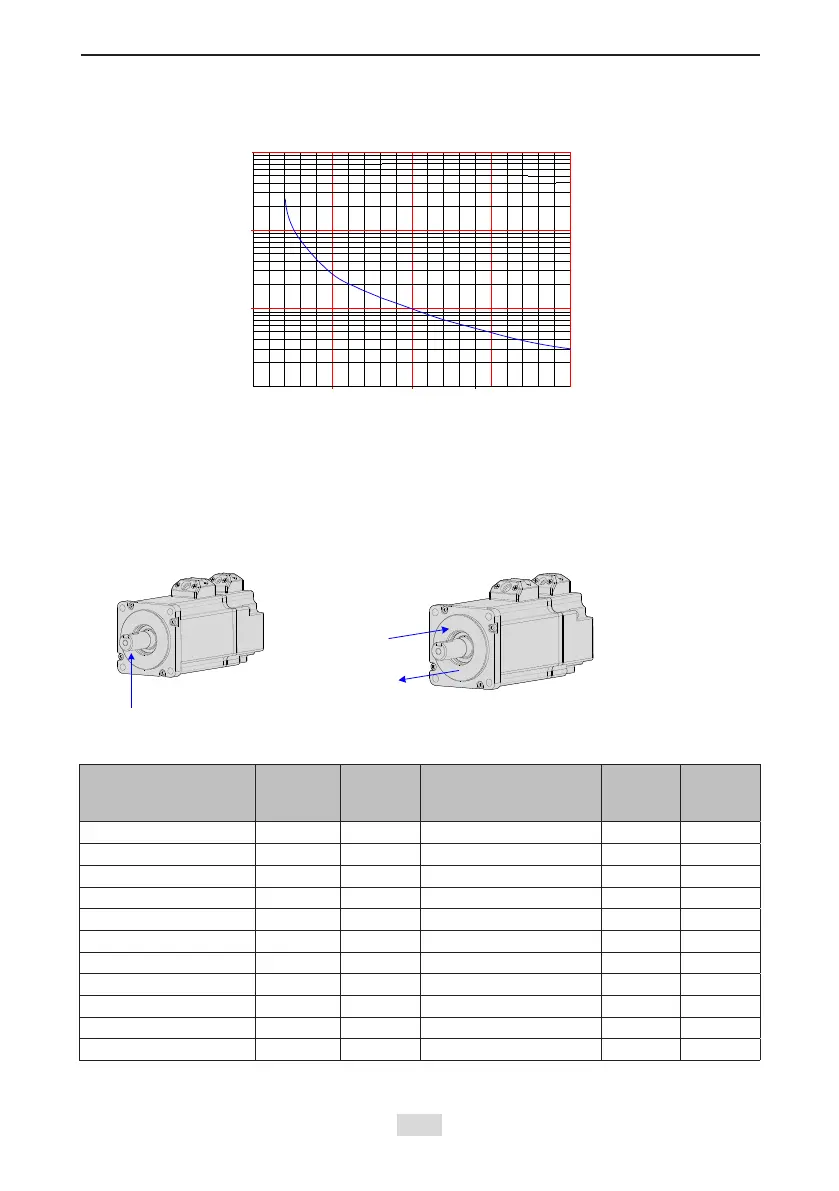

Figure 2-7 Motor overload curve
100 150 200 250
1000
Load ratio (%)
Running time (s)
300
1
10
100
The maximum torque of H1, H2, and H4 are 3 times the rated torque.
Except for the 2.9 kW model, the maximum torque of H3 is 2.5 times the rated torque.
The maximum torque of the 2.9 kW model is 2 times the rated torque.
4) Motor Radial and Axial Loads
Figure 2-8 Motor radial and axial load diagram
Radial load P
direction
Axial load A direction
Axial load B direction
Servo Motor Model
Allowed
Radial
Load (N)
Allowed
Axial
Load (N)
Servo Motor Model
Allowed
Radial
Load (N)
Allowed
Axial
Load (N)
ISMH1-10B30CB-***Z 78 54 ISMH2-40C30CD-***Y 1176 392
ISMH1-20B30CB-***Z 245 74 ISMH2-50C30CD-***Y 1176 392
ISMH1-40B30CB-***Z 245 74 ISMH3-85B15CB-***Y 490 98
ISMH1-55B30CB-***Z 392 147 ISMH3-13C15CB-***Y 686 343
ISMH1-75B30CB-***Z 392 147 ISMH3-85B15CD-***Y 490 98
ISMH1-10C30CB-***Z 392 147 ISMH3-13C15CD-***Y 686 343
ISMH2-10C30CB-***Y 686 196 ISMH3-18C15CD-***Y 980 392
ISMH2-15C30CB-***Y 686 196 ISMH3-29C15CD-***Z 1470 490
ISMH2-10C30CD-***Y 686 196 ISMH3-44C15CD-***Z 1470 490
ISMH2-15C30CD-***Y 686 196 ISMH3-55C15CD-***Z 1764 588
ISMH2-20C30CD-***Y 686 196 ISMH3-75C15CD-***Z 1764 588
