IS810N-INT Series Servo System User Manual (Brief) Chapter 3 Installation
- 60 -

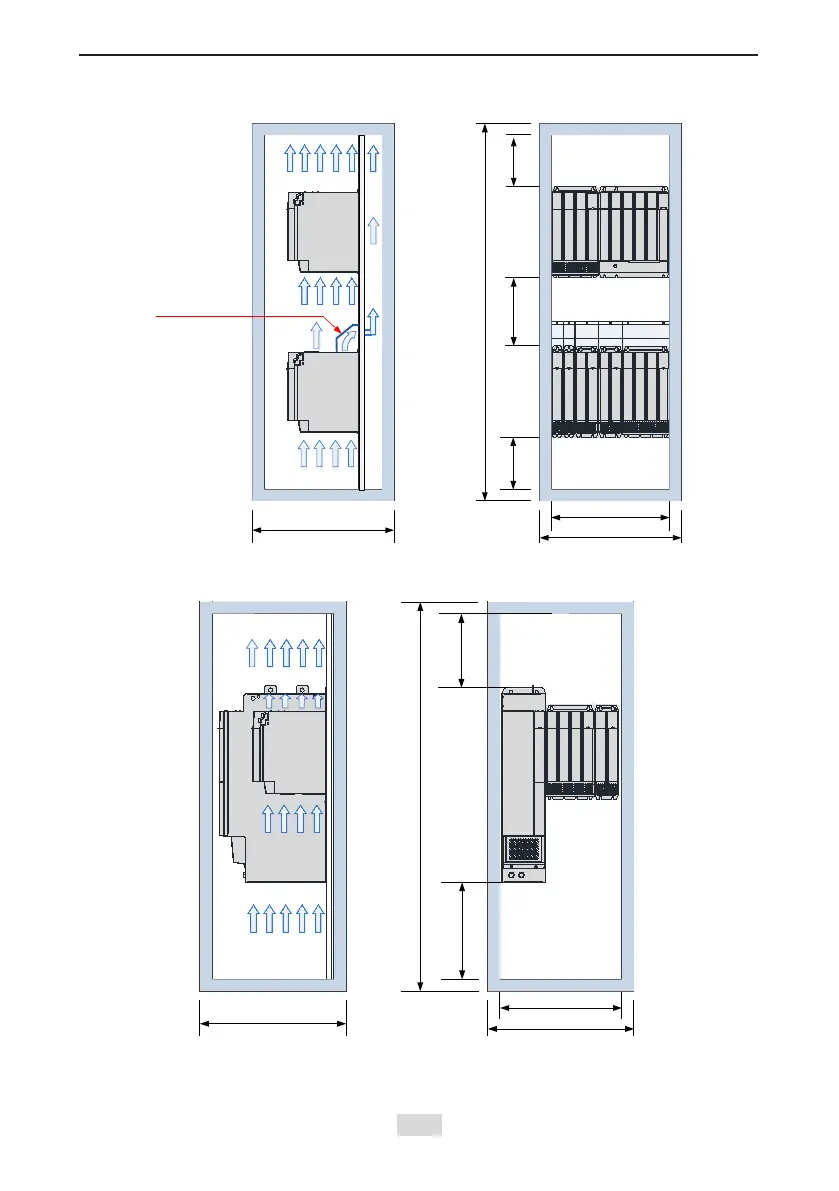

Figure 3-6 Space for two-layer installation of a book-type power supply unit
600
600
≥500
S3
S2
S1
2200
Thermal
insulation
deflector
Figure 3-7 Space for two-layer installation of a vertical power supply unit
S2
S1
2200
600
≥500
600
Installation direction: The product must be installed vertically.
