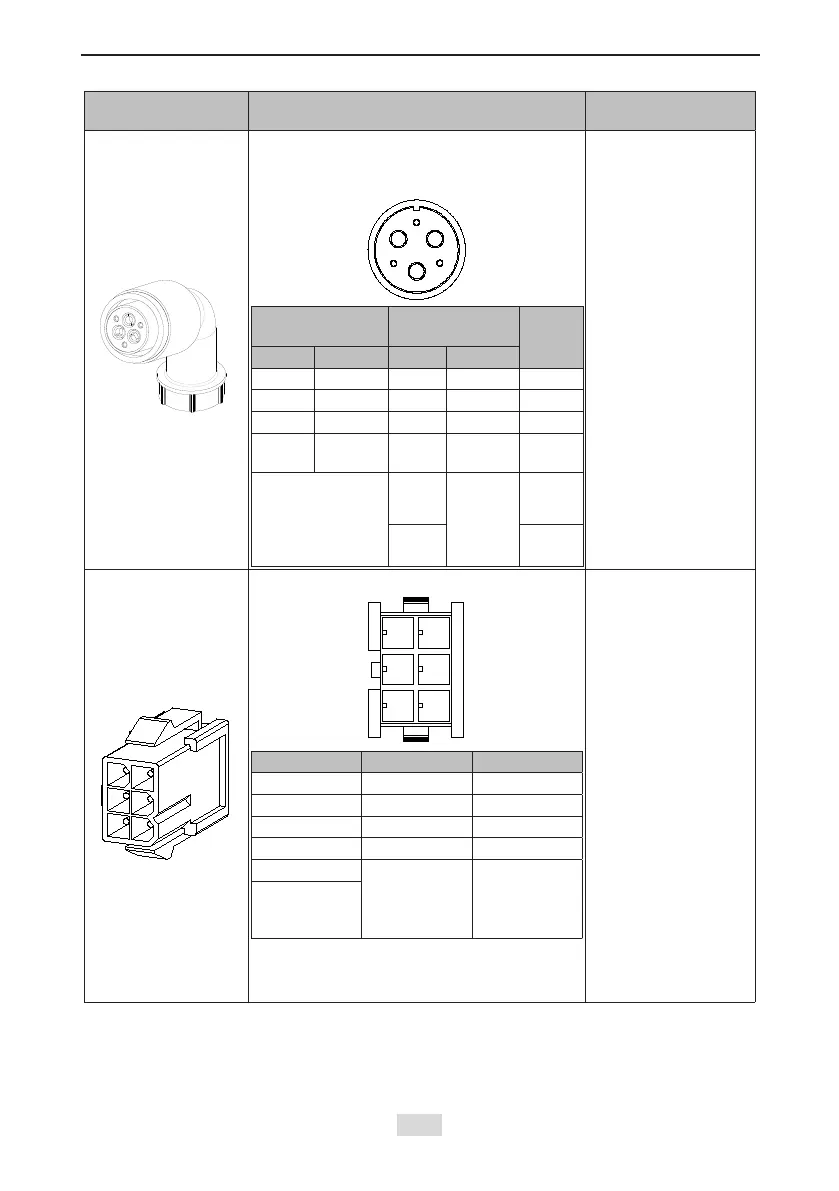

IS810N-INT Series Servo System User Manual (Brief)Chapter 4 Wiring
Connector
Appearance
Terminal Pin Layout
Frame Size of
Applicable Motor
MIL-DTL-5015 series 3108E20-22S military
spec.
F
A
E
DB
C
20-22 military spec.
Y Series Terminal
Denition
Z Series Terminal
Denition
Color
Pin No. Signal Pin No. Signal
A U A U Blue
C V C V Black
E W E W Red
F PE F PE
Yellow/
Green
B
Brake
(without
positive
and
negative)
D
Black 6-pin connector
4
5
6
1
2
3
Pin No. Signal Color
1 U White
2 V Black
4 W Red
5 PE Yellow/Green
3 Brake
(without
positive and
negative)
6
Recommendation:
Plastic housing: MOLEX-50361736; terminal:
MOLEX-39000061
