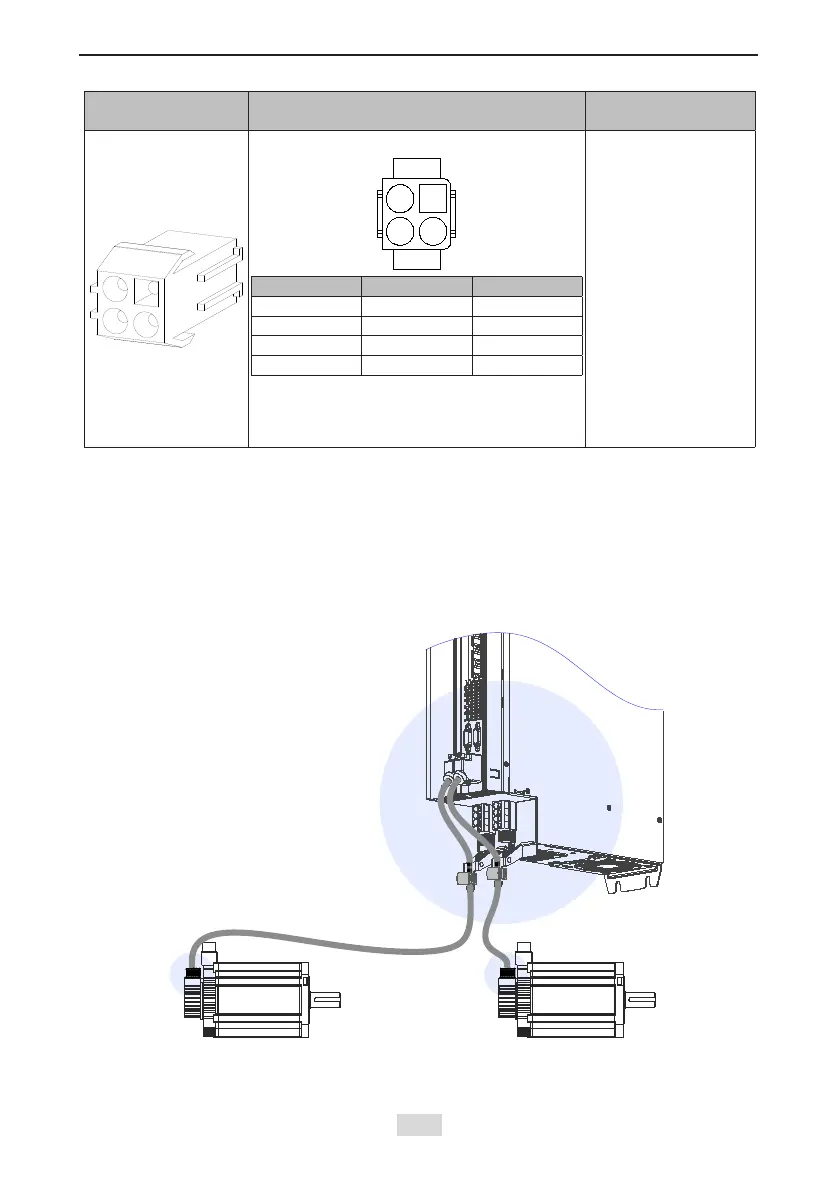

IS810N-INT Series Servo System User Manual (Brief) Chapter 4 Wiring
Connector
Appearance
Terminal Pin Layout
Frame Size of
Applicable Motor
4-pin connector
1
2
3
4
Pin No. Signal Color
1 U Blue
2 V Black
3 W Red
4 PE Yellow/Green
Recommendation:
Plastic housing: Zhejiang CWB EL-4A;
terminal: Zhejiang CWB 421.6003.0
40 (X series)
60 (X series)
80 (X series)
NOTE
Frame size of motor: indicates the width of the installation ange.
The motor cable colors are subject to the actual cables. The cable colors mentioned in this
user guide are Inovance cables.
2. Encoder Cable Connection
● Connection of the bus incremental encoder
Figure 4-7 Example of connecting encoder signal cables
The encoder cable colors are subject to the actual cables. The cable colors mentioned in the
user guide are Inovance cables.
