- 96 -
IS810N-INT Series Servo System User Manual (Brief) Chapter 4 Wiring

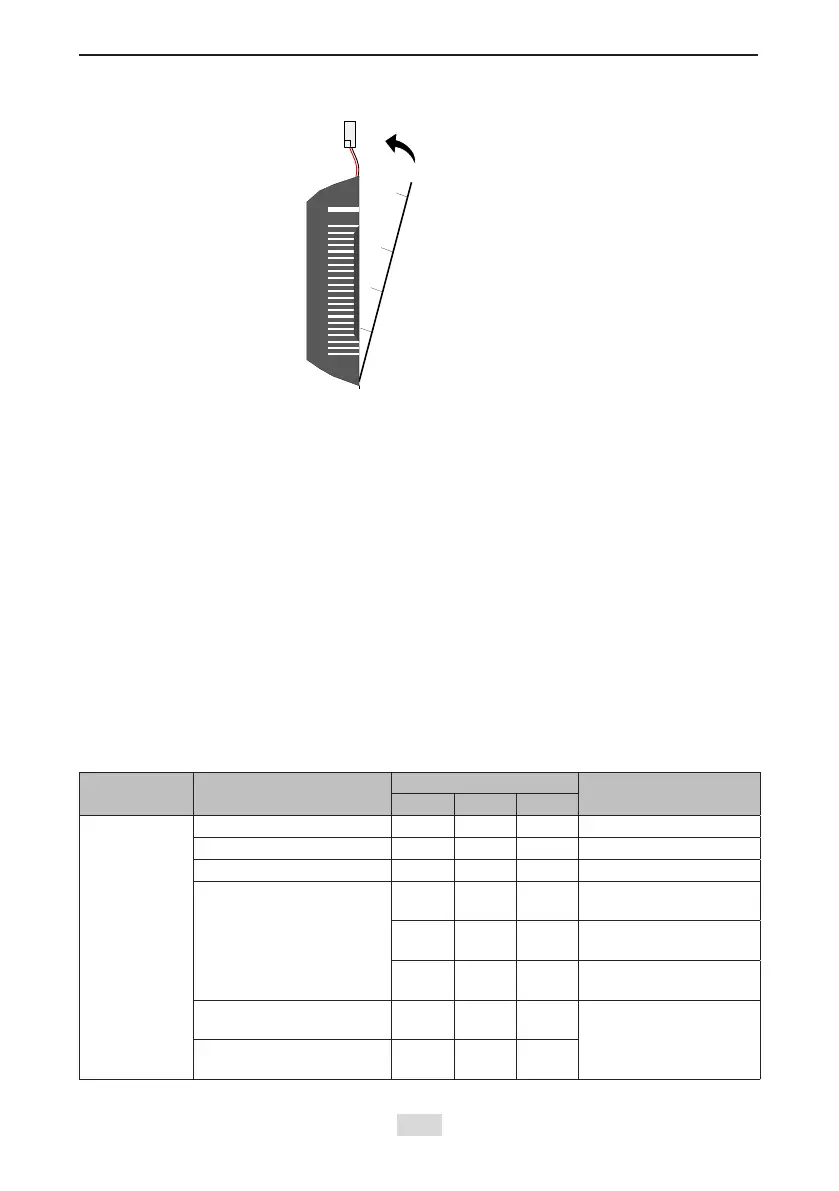

When closing the battery
box cover, prevent the
connector cables from
being pinched.
Note: Improper use of a battery may result in battery leakage which will corrode the
components or cause the battery to explode. Observe the following precautions during use:
• Ensure correct battery polarity when installing the battery;
• Leaving a battery that has been used for a long time or is no longer useful inside a device
can cause battery leakage. The electrolyte inside the battery is highly corrosive, not only
corroding nearby components, but also increasing the short circuit possibility. Replace the
battery periodically (recommended period: 2 years).
• Do not disassemble the battery as electrolyte spray may cause personal injuries.
• Do not throw a battery into re as this may cause the battery to explode.
• Prevent battery short circuits, and do not strip the battery tube. It is dangerous for a metal
item to contact both electrodes of the battery, as it may cause a high current, weakening
the battery power and probably causing explosion of the battery due to severe heating.
• Do not charge the battery.
• Dispose the battery according to local regulations.
Selecting a battery:
Select an appropriate battery according to the following table.
Table 4-9 Battery description for absolute encoders
Battery Spec. Item
Rating
Condition
Min. Typical Max.
Output: 3.6 V,
2500 mAh
Recommended
manufacturer
and model:
Shenzhen
Jieshun,
LS14500
External battery voltage (V) 3.2 3.6 5 In standby mode*2
Circuit fault voltage (V) 2.6 In standby mode
Battery alarm voltage (V) 2.85 3 3.15
Battery current
consumption (uA)
- 2 -
During normal
operation*1
- 10 -
In standby mode, axis
static
- 80 -
In standby mode, axis
rotation
Battery operating
temperature (
°C
)
0 - 40
Same as motor ambient
temperature
Battery storage
temperature (
°C
)
-20 - 60
The preceding data is measured at the ambient temperature of 20
°C
.
