Inovance IS810N-INT Series User Manual

- 98 -
IS810N-INT Series Servo System User Manual (Brief) Chapter 4 Wiring
2. Wiring of Battery Box and Signal Wires

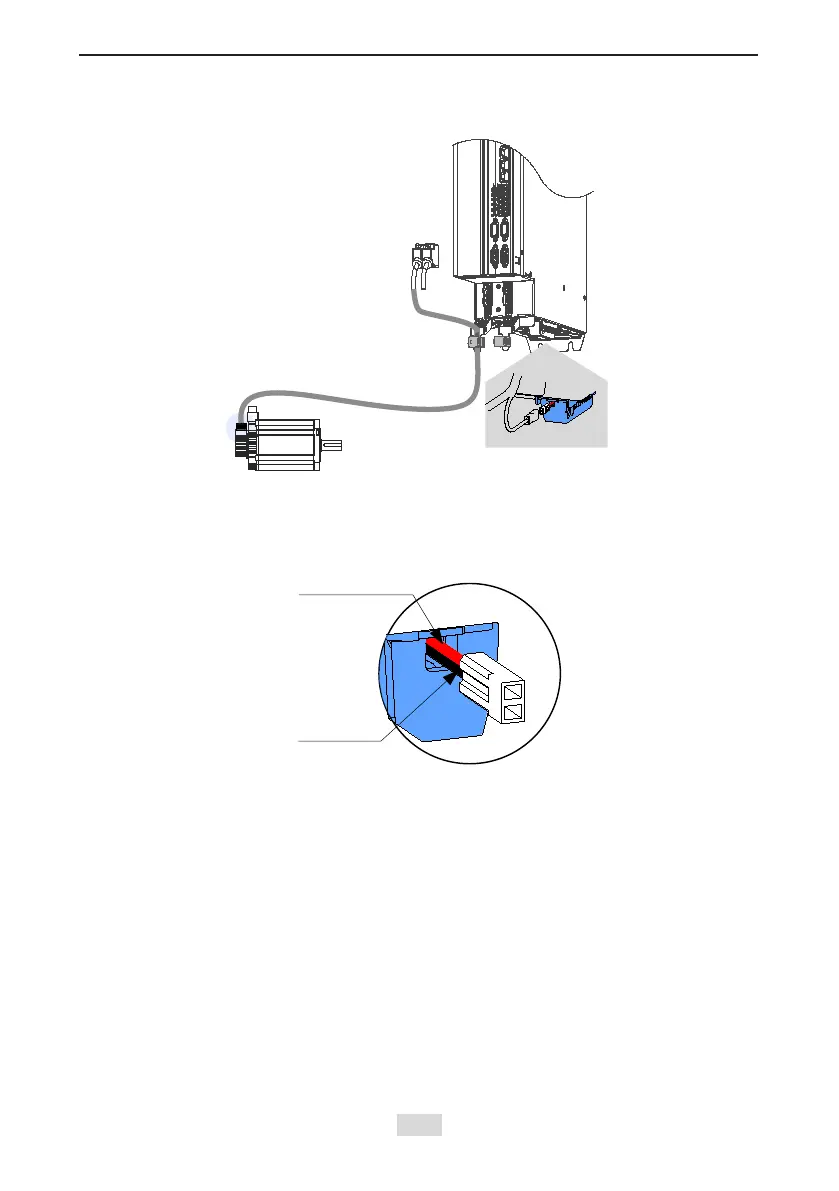

Figure 4-9 Example of wiring of the battery box and signal wires for an absolute encoder
Color of the battery box outer lead:
Figure 4-10 Battery box outer lead of the absolute encoder
Red: +
Black: -
Store the battery box at the required ambient temperature and ensure the battery is in reliable
contact and has sufcient capacity. Otherwise, position information loss may occur in the
encoder.
