Complete the Handpiece Assembly

11-8 CUSA Excel Ultrasonic Surgical Aspirator System User’s Guide

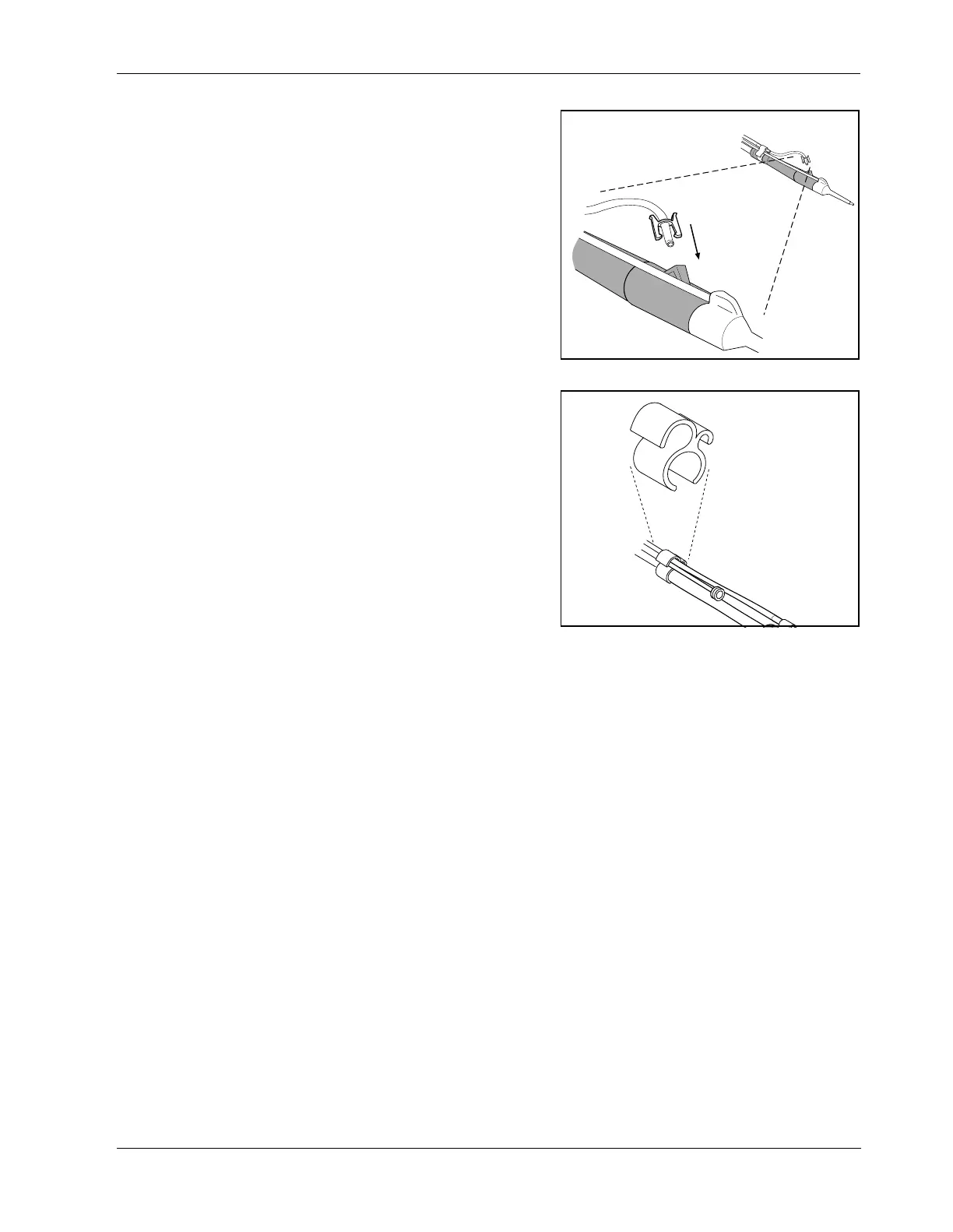

5. Connect the manifold

suction tubing and clip to

the suction port in the

nosecone.

6. Push one to three

manifold tubing clips

onto the handpiece cable.

Note: It is only necessary

to attach one to three

clips, but you can attach

all five clips in the

package.

7. Hand off the remaining manifold tubing, handpiece cable, and

handpiece electrical connector to the circulator.
