Connect the Irrigation Tubing

Setting Up the CUSA EXcel System

CUSA Excel Ultrasonic Surgical Aspirator System User’s Guide 5-13

3. Remove the cap from the irrigation tubing.

4. Connect the irrigation tubing to the I.V. administration set tubing.

5. Make sure that the person assembling the handpiece has connected the

irrigation tubing to the handpiece flue.

6. Open the roller clamp on the I.V. tubing.

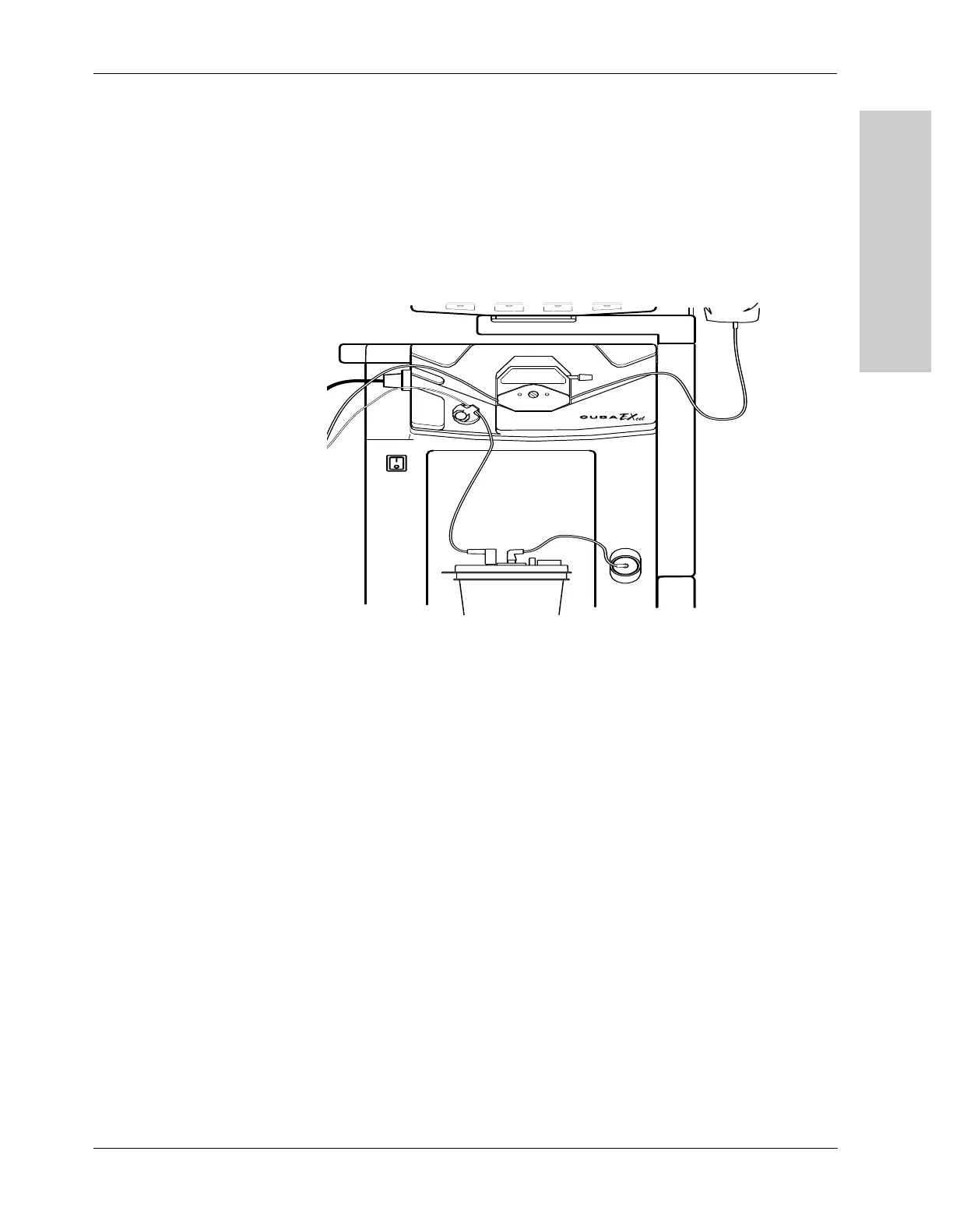

The following figure shows the irrigation system as it looks after

successful setup.

Figure 5-2.

The assembled irrigation system
