Integra Cusa Excel

To Next Page

To Previous Page

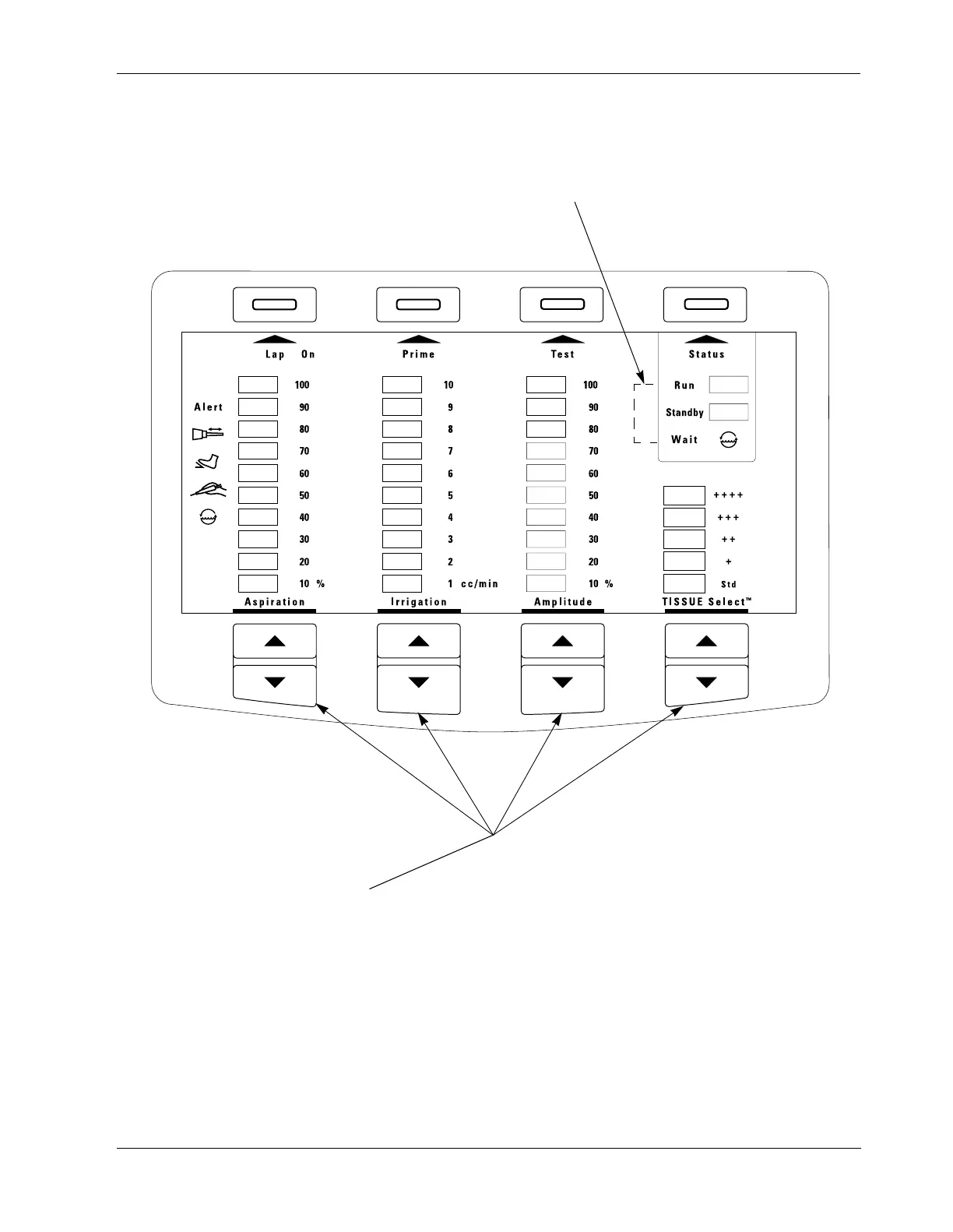

Control Panel

3-6 CUSA Excel Ultrasonic Surgical Aspirator System User’s Guide

Status Indicators:

Run (Green)

Standby (Amber)

Wait/Cooling Water (Amber)

Setpoint Adjustment buttons

(Up/Down Arrows):

Aspiration (Green)

Irrigation (Blue)

Amplitude (Orange)

TISSUE Select (Yellow)
