VIsualEyes 515/525 - Additional Information Page 47

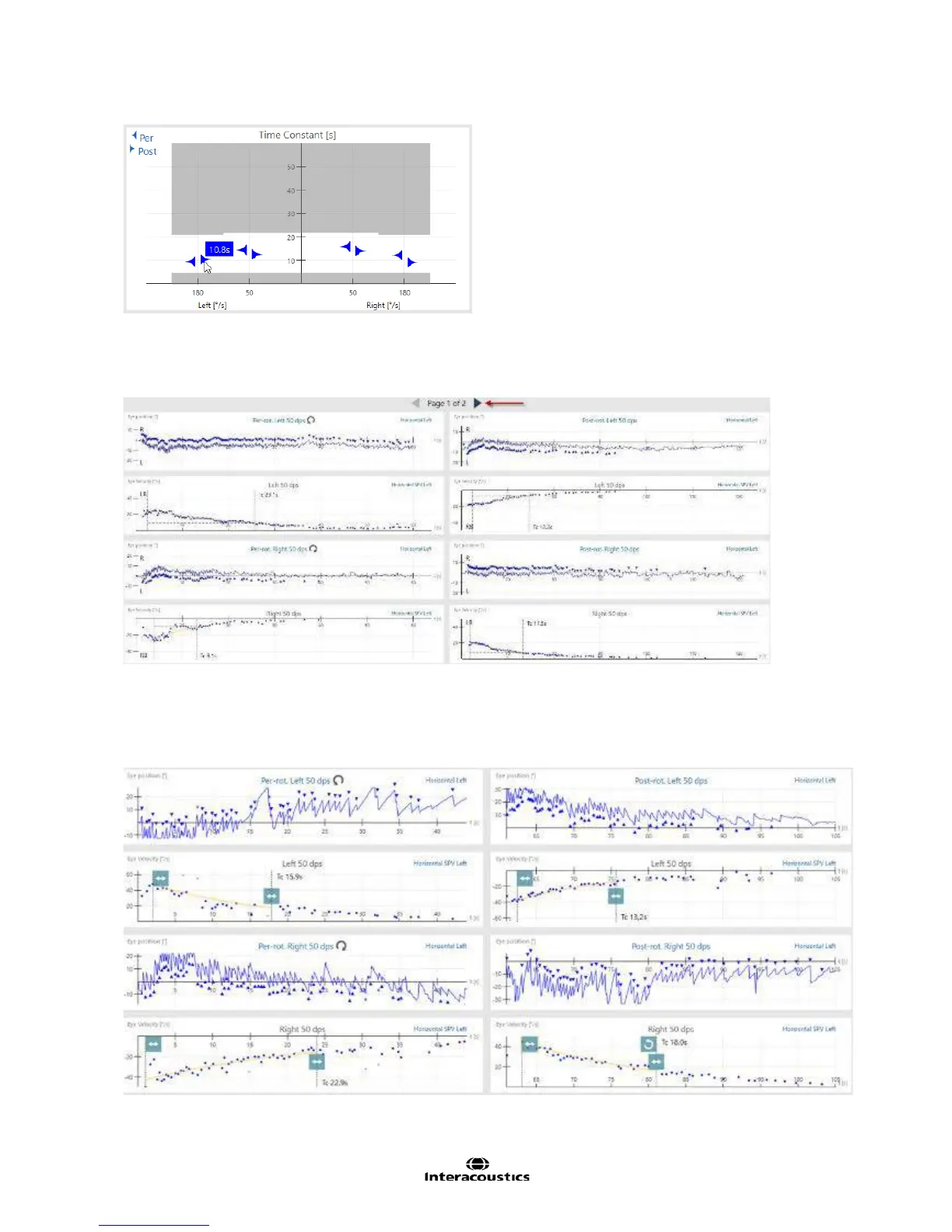

Figure 3.6.25 Numerical value displayed
The largest data points represents the velocity (°/sec) page that is currently being displayed. Tapping on a
smaller data point will then display the data for that velocity. Alternatively, tap the arrows next to the page
numbers to move to results for other velocities (Figure 3.6.26).
Figure 3.6.26 Changing page numbers in Step Rotation summary
Eye position and eye velocity display
The raw eye position tracings and corresponding slow phase velocity (SPV) results are displayed underneath
the Gain, Time Constant, and Tc Symmetry graphs on the summary test results screen. These are placed
one above the other for simplified viewing of all segments within a single Step Rotation speed tested.
Figure 3.6.27 Raw eye movement data and time constant data for per and post rotary stimuli
