Iris Diagnostics, a Division of International Remote Imaging Systems, Inc.
iQ
®
200 Sprint™ Automated Urine Microscopy Analyzer Service Manual 300-4949 Rev A 01/2005 4-9
4. Adjustments
4. Double-click on “MN” “Move Next” command until the tube is
presented before the tube detector.

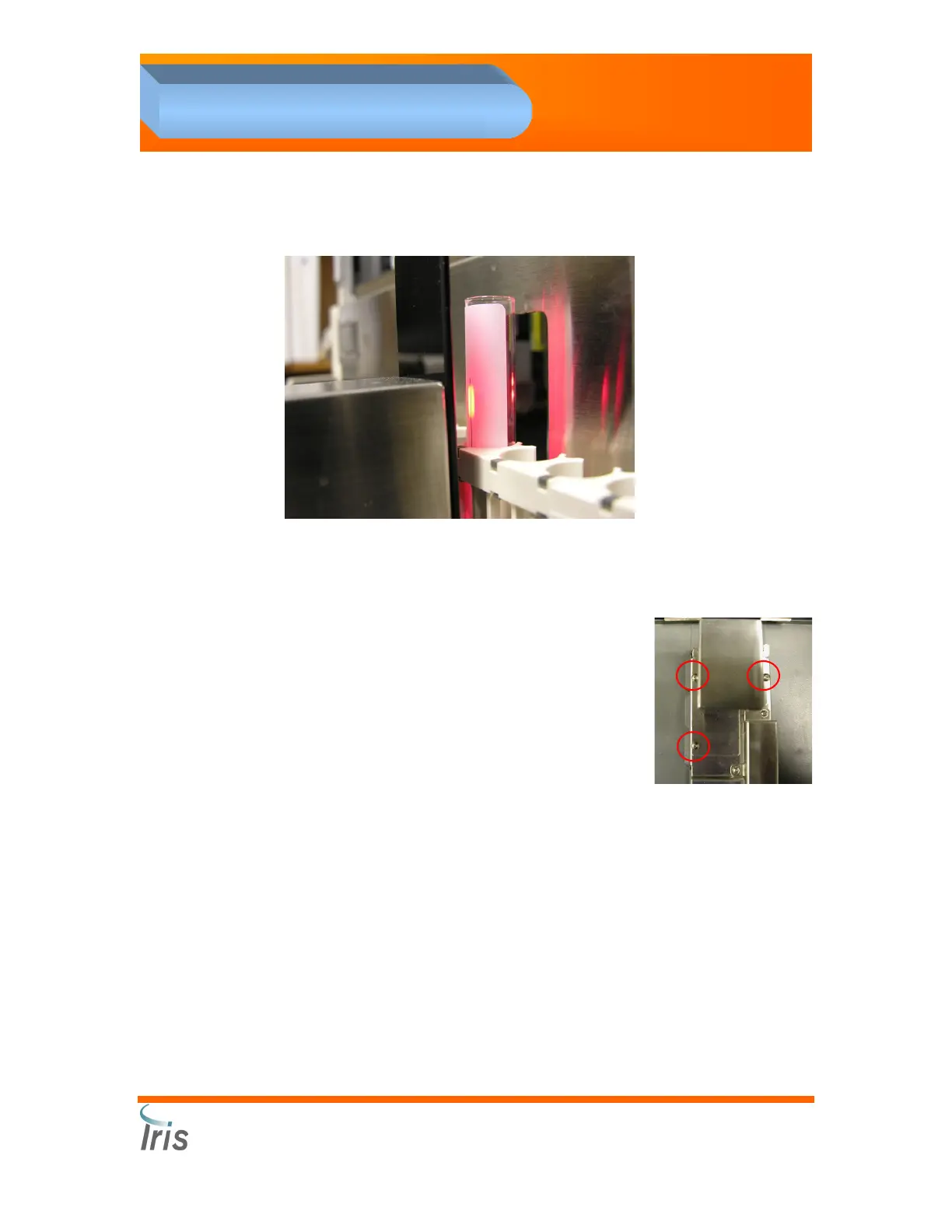

5. Verify that the tube detector’s red spot is
centered on the tube’s centerline as shown.
Physically adjust the tube detector if necessary:
a. Loosen the retaining screws.
b. Adjust the STD position until the red spot is
centered on the line.
c. Tighten the retaining screws to secure the
STD.
6. Double-click on “MN”, then OK to move to the
next empty position.
7. From the Service Application STM menu, click on “Sensors” then
double-click “tube detect (raw)”
8. Record the value for no tube position.
9. Use the hexadecimal calculator to compute the new threshold value:
(no tube recorded value + 5 Hex).
Example: If the no tube threshold is 1F + 5 Hex = 24. Enter this
calculated value in the Tube Detect Threshold field.
10. From the Service Application menu, click on STM’s “Calibration
Table”, then click on “Tube Detect Threshold”, enter the calculated
value and click “OK”.
