3.28.1.2 Setting the "View1" tab
The “View1” tab setting is used for the [View 1] screen. Namely, this settings apply to the single
view screen (normal screen), or the "View 1" screen when you select multi view function to display
"View 1" and "View 2" screens. (For multi view function, see 3.11 “Displaying Chart in Various
Ways (Multi View/Wide View)”.)
1) Left-click the setting items to set them ON /OFF.
Left-click the [OK] to close the panel.
[Cancel]: It closes a panel without saving contents when clicking the [Cancel].
[Apply]: Contents can be saved without closing a panel when clicking the [Apply]

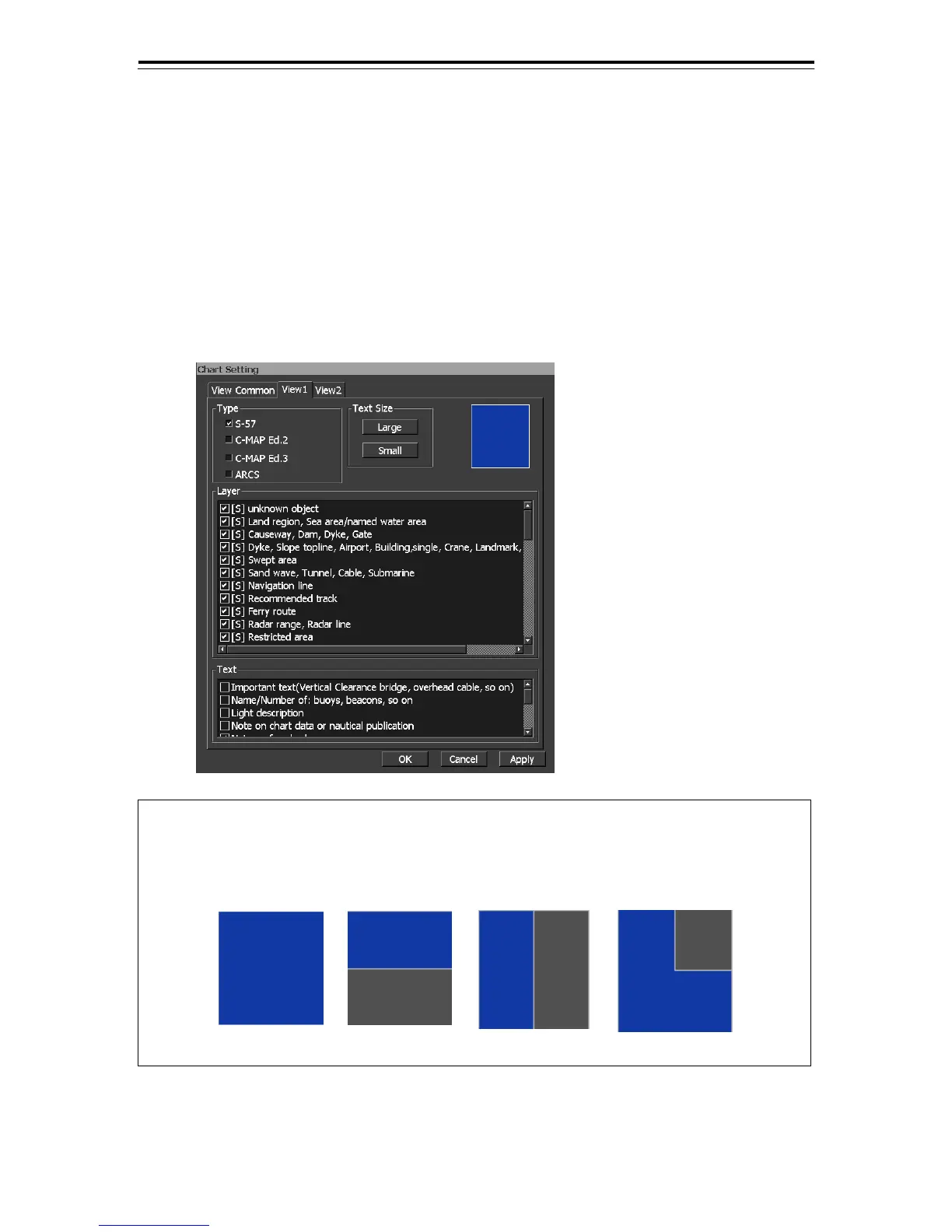

[“View1” tab]
Multi screen view statuses:
The top right square on the view panel shows how view is divided. The blue area is the display area for
the current view.
(For multi screen display, see 3.11.1 “Multi View Screen”)
Single view Top Bottom view Right Left view Right Top view
