Juniper EX4300 Series

Table 17: Uplink Modules Used in EX4300-48MP and EX4300-48MP-S Switches
Uplink Module Name Model Number Figure
2-port 40-Gigabit
Ethernet QSFP+/
100-Gigabit Ethernet
QSFP28
EX-UM-2QSFP-MR

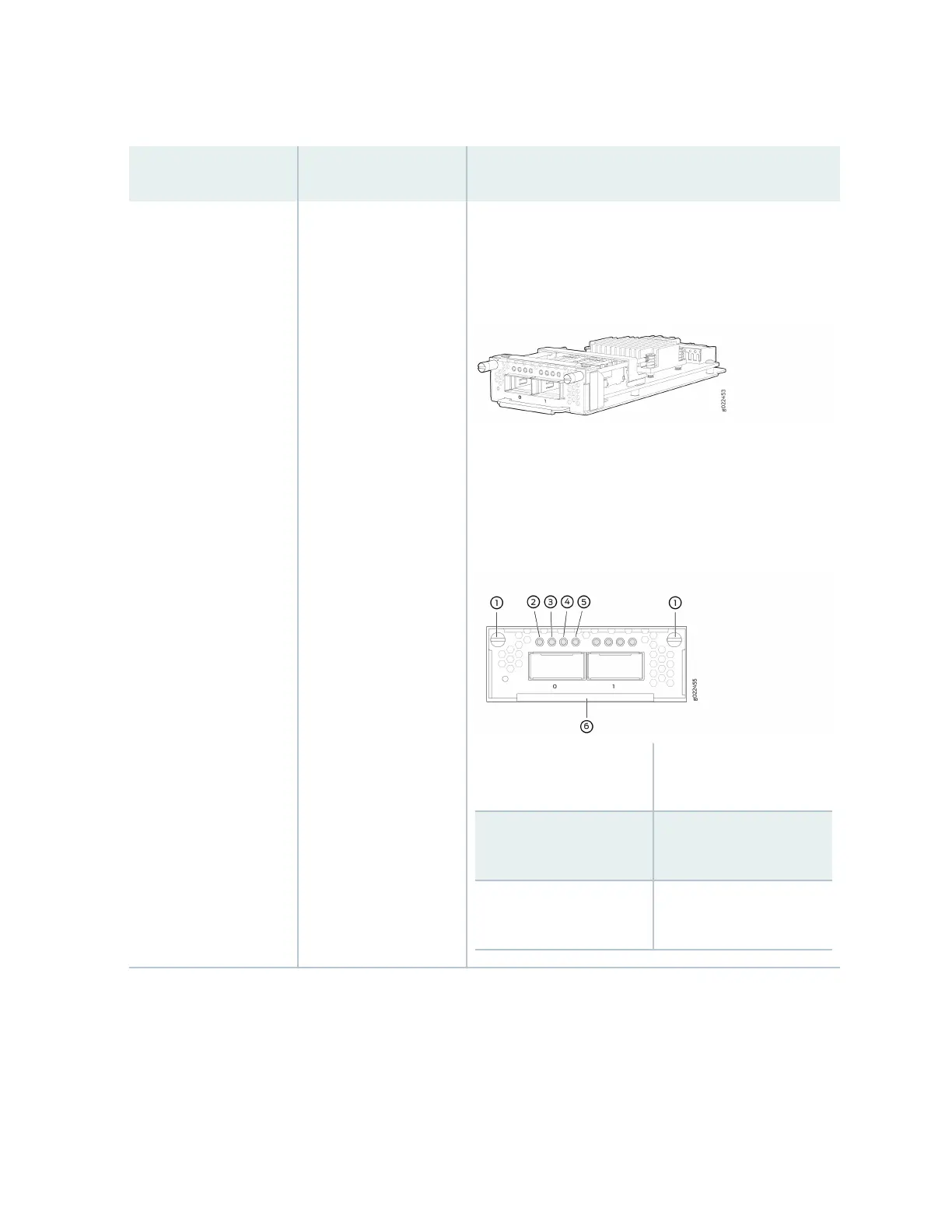

Figure 23: 2-Port 40-Gigabit Ethernet QSFP+/100-
Gigabit Ethernet QSFP28 Uplink Module
Figure 24: LEDs on the 2-Port 40-Gigabit Ethernet
QSFP+/100-Gigabit Ethernet QSFP28 Uplink
Module
1—
Capve screws of
the uplink module
4—
Link acvity LED of
the uplink module
port
2—
Link acvity LED of
the uplink module
port
5—
Link acvity LED of
the uplink module
port
3—
Link acvity LED of
the uplink module
port
6—
Handle of the uplink
module
67
