Table 13: Junos Pulse Gateway MAG6611 Slot Allocation (continued)
ReservedIntegrated Access Service ModuleSlot/FPC
X7

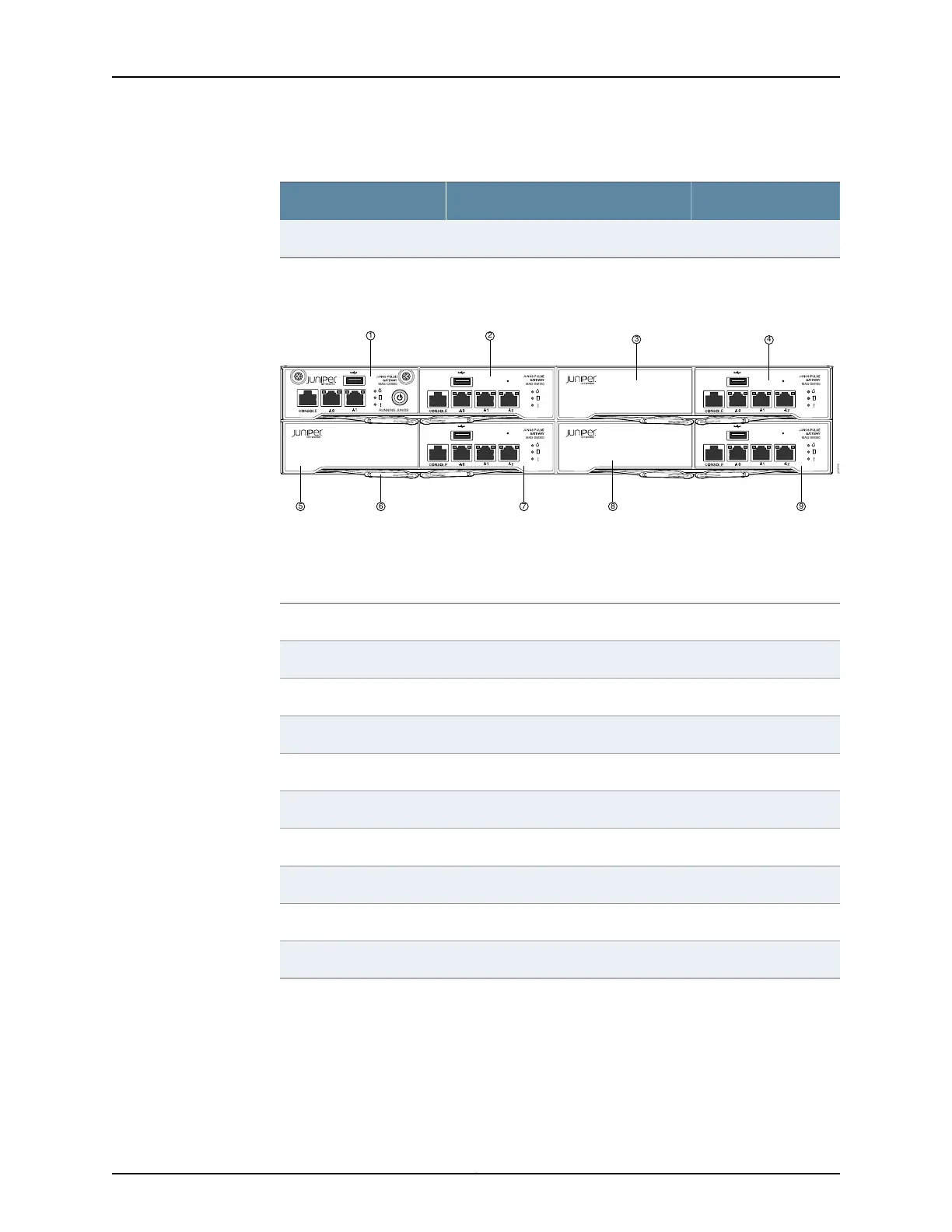

Figure 9 on page 14 shows the front panel of a populated MAG6611.
Figure 9: Populated MAG6611 Front Panel
g039116
MAG-SM360MAG-SM360
MAG-SM160
MAG-SM160
MAG-CM060
RUNNING JUNOS
1
2
3
4
5 6 7 8 9
Table 14 on page 14 lists the front panel components of the populated MAG6611 shown
in Figure 9 on page 14.
Table 14: MAG6611 Front Panel
ComponentNumber
Chassis management card1
Service module2
Blank faceplate3
Service module4
Blank faceplate5
Module removal lever6
Service module7
Blank faceplate8
Service module9
Related
Documentation
Junos Pulse Gateway Features and Functions on page 4•
• Status LEDs on the Junos Pulse Gateway on page 22
• Junos Pulse Gateway MAG6611 Back Panel on page 15
Copyright © 2014, Juniper Networks, Inc.14
Junos
®
Pulse Gateway Hardware Guide
