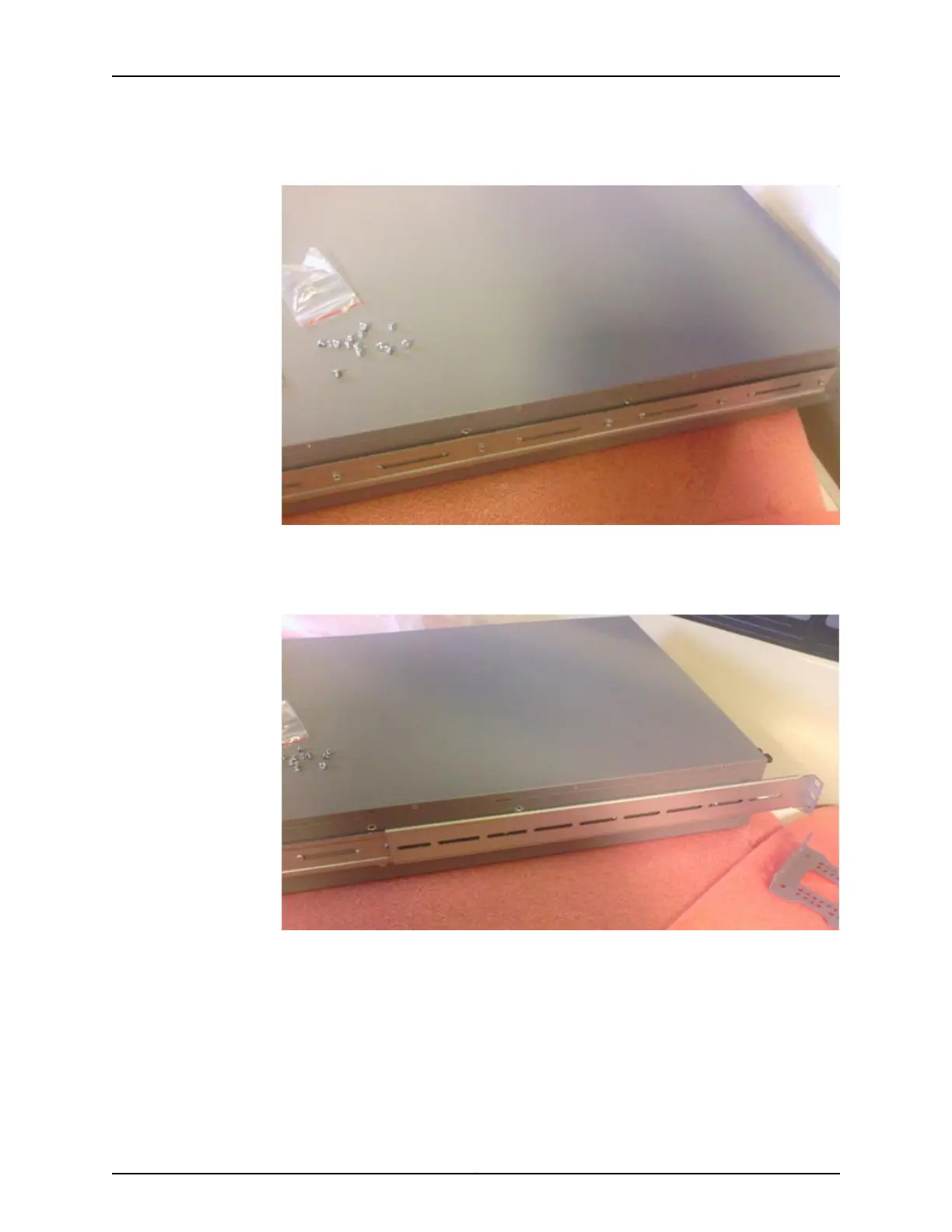

Figure 24: Attaching the MAG-RK2U Front Rail Rear
6. Slide the rear rail onto the front rail. The ear of the rear rail should be facing the rear
of the Junos Pulse Gateway chassis and pointing outward.
Figure 25: Sliding the MAG-RK2U Rear Rails In Place
7. Measure your rack or cabinet to determine the distance between the ear on the front
rail and the ear on the back rail and adjust your rear rail accordingly.
8. Secure the rear rail to the front rail using the flat-head M4 screws.
