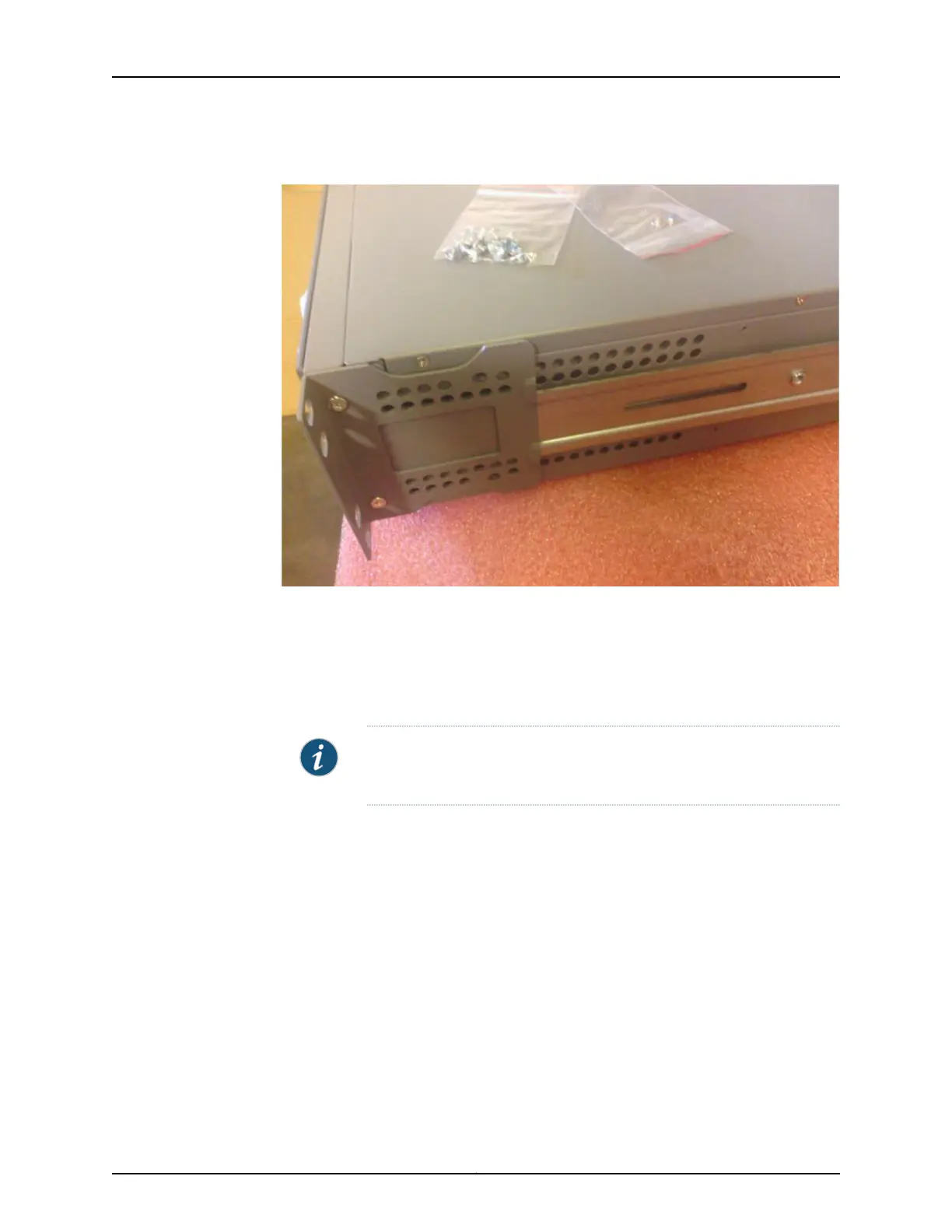

Figure 23: Installing the MAG-RK2U Front Rail
4. Secure the front rail to the front of the Junos Pulse Gateway using two of the flat-head
6-32 screws.
5. Attach the rear of the front rail using four flat-head M4 screws.
Use the screws on the recessed portion of the front rail. Do not use the holes that
protrude as those are for securing the rear rail.
NOTE: The second recessed slot appears to require two screws, but
actually requires only one.
Copyright © 2014, Juniper Networks, Inc.58
Junos
®
Pulse Gateway Hardware Guide
