The MAG-RK1U2 mounting kit includes:
•
One mounting tray
•
Ten flat-head 8-32 screws
To attach your MAG4610 devices to the MAG-RK1U2 mounting kit:
1. Remove all contents from the packaging.
2. Place two MAG4610 devices upside down and side by side on a flat stable surface.
See Figure 29 on page 62.
3. Turn the mounting tray upside down and place it over the two MAG4610 devices. Align
the mounting ears with the front side of the devices. See Figure 29 on page 62.

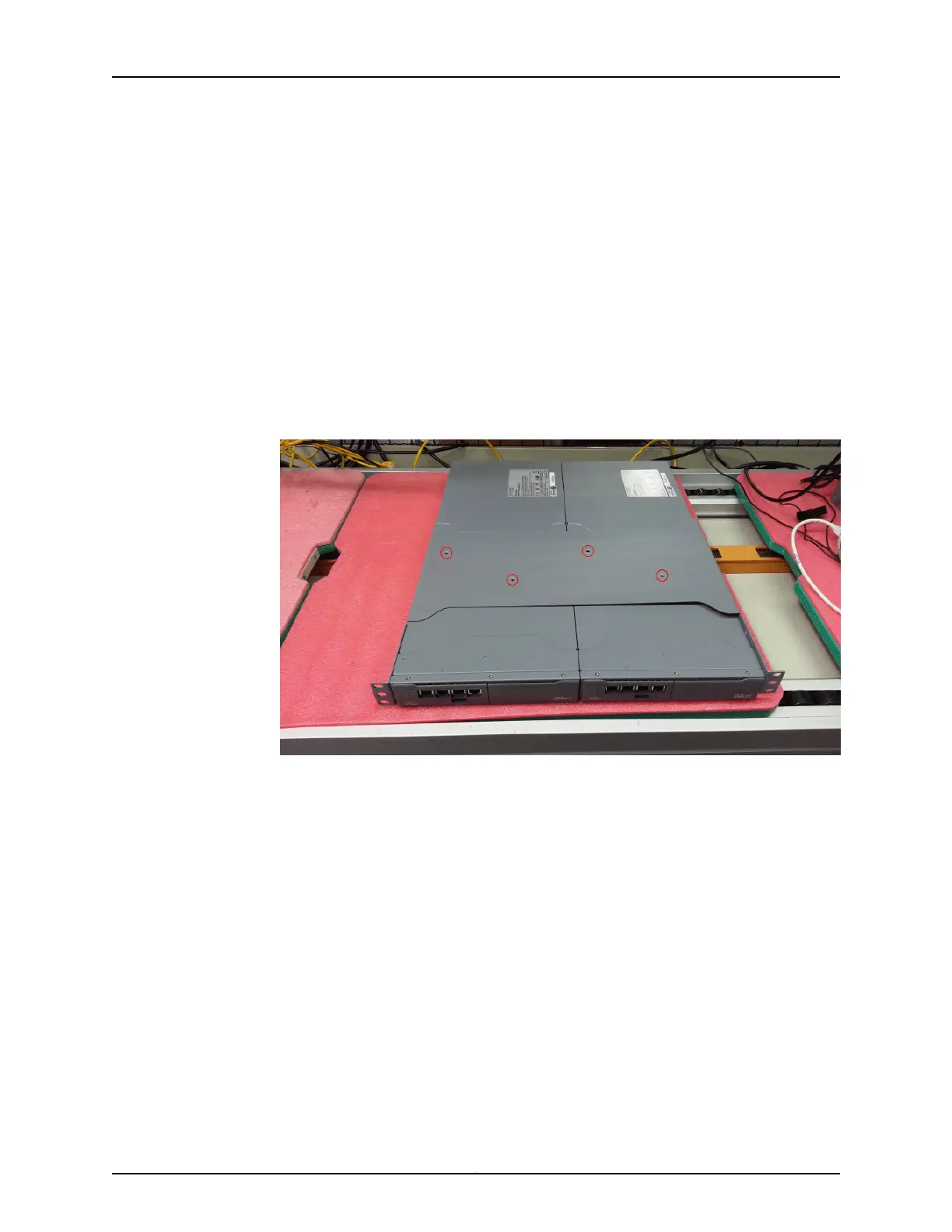

Figure 29: Aligning the Mounting Tray with the MAG4610 Devices
4. Secure the MAG4610 devices to the bottom mounting tray using four 8-32 flat-head
screws. See Figure 29 on page 62.
5. Secure the MAG4610 devices to the sides of the mounting tray using three 8-32
flat-head screws. See Figure 30 on page 63.
Copyright © 2014, Juniper Networks, Inc.62
Junos
®
Pulse Gateway Hardware Guide
