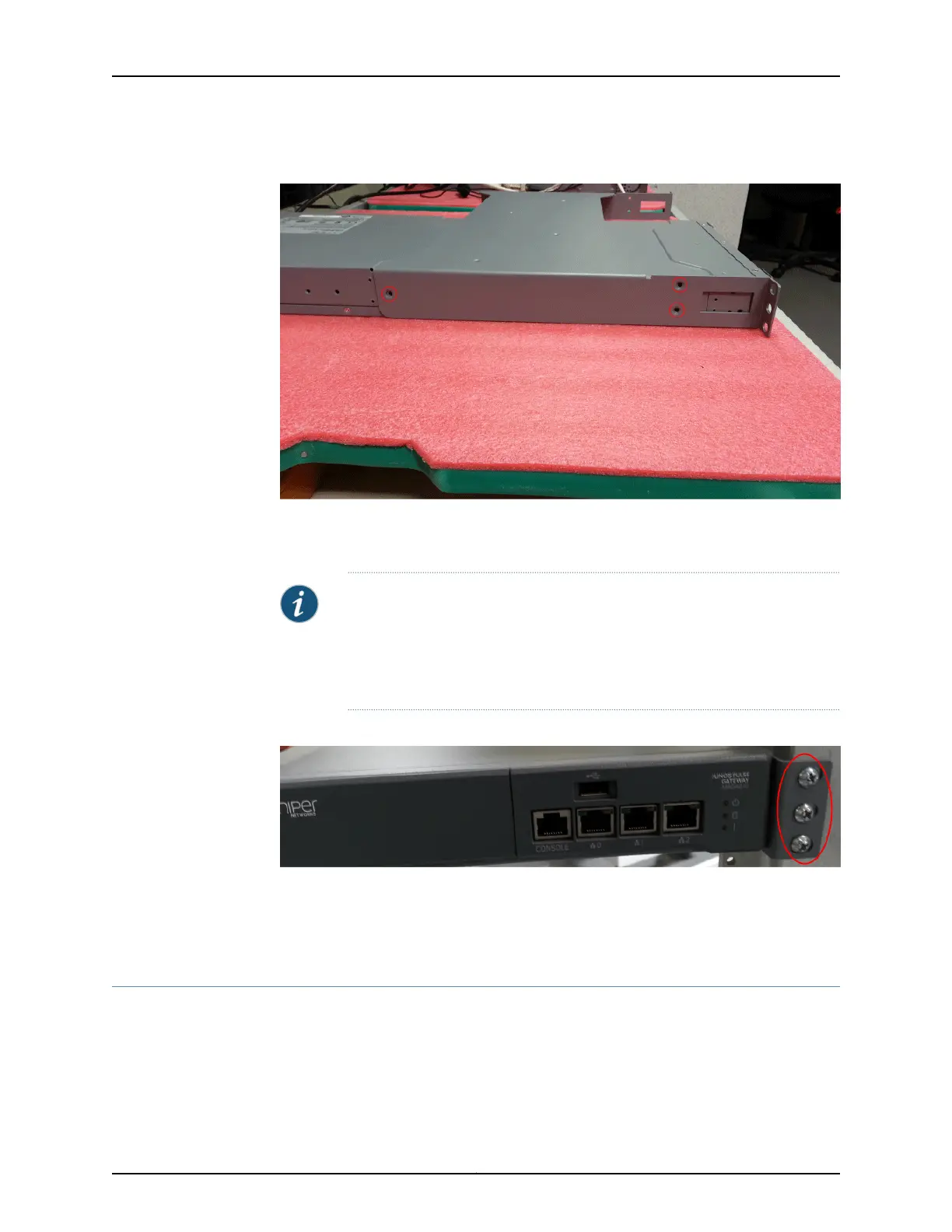

Figure 30: Securing the Side of the Mounting Tray to the MAG4610
To mount the MAG-RK1U2 in a rack or chassis, follow the instructions in “Mounting the
Junos Pulse Gateway on Four Posts in a Rack or Cabinet” on page 65.
NOTE: The MAG-RK1U2 is a front-only mount. It does not require rear rails.
You must, however, use three screws on each mounting ear to ensure the
mounting tray does not sag. See Figure 31 on page 63. The MAG4610 rail kit
includes M5 and 10-32 Phillips round head screws that can be used if you do
not have any mounting screws.
Figure 31: Securing the Mounting Tray to the Rack
Related
Documentation
Mounting the Junos Pulse Gateway on Four Posts in a Rack or Cabinet on page 65•
• Using the MAG4610 Rack-Mounting Kit on page 60
Using the Mid-Ear Mounts
The MAG-RK1U and MAG-RK2U mounting kits also contain mid-ear mounts. The mid-ear
mount package includes:
•
4 mid-ear mounts
•
8 silver medium length screws
63Copyright © 2014, Juniper Networks, Inc.
