4. Use a flat-head screw from the 2-pc bag in the single hole at the front to attach the
bracket to the MAG4610. Use flat-head screws from the 10-pc bag in the remaining
two holes.
5. Position the rear bracket to the inside of the rail ear and fasten using the flat-head
screws from the 10-pc bag. Screw from the outside of the rail ear inward.
6. Attach the rail to your Junos Pulse Gateway using the silver round-head screws. Do
not tighten the screws yet.
7. Measure your rack or cabinet to determine the distance between the ear on the front
bracket and the ear on the back bracket and adjust your rear bracket accordingly.

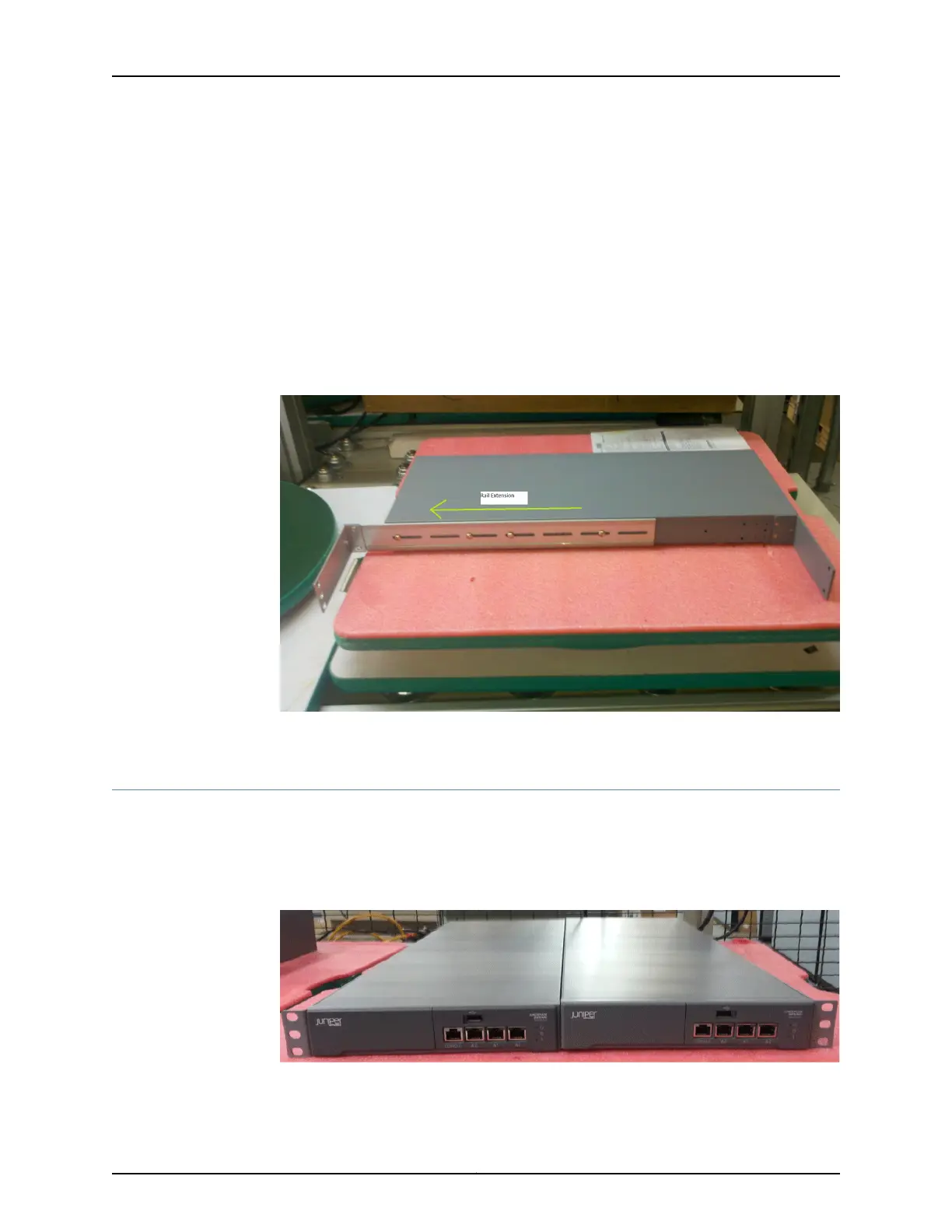

Figure 27: Adjusting the MAG4610 Rear Rail and Bracket
8. Tighten the screws on the rail to secure it in place.
Using the MAG-RK1U2 Mounting Kit
The MAG-RK1U2 mounting kit contains the hardware for rack-mounting two MAG4610
1U Junos Pulse Gateways side by side in a rack or cabinet. Figure 28 on page 61 shows
two MAG4610 devices side by side using the kit.
Figure 28: Mounting Two MAG4610 Devices Side by Side
61Copyright © 2014, Juniper Networks, Inc.
Chapter 9: Installing the Junos Pulse Gateway
