Juniper Junos Pulse MAG2600 - Figure 32: MID-Mounting a 1-U MAG6610 Junos Pulse Gateway; Figure 33: MID-Mounting a 2-U MAG6611 Junos Pulse Gateway

•
8 black medium length screws
•
12 sort round-head M4 screws
Use the round-head M4 screws to attach the mid-mount ears to the Junos Pulse Gateway.
Use the medium length screws (either black or silver) to rack-mount your device.

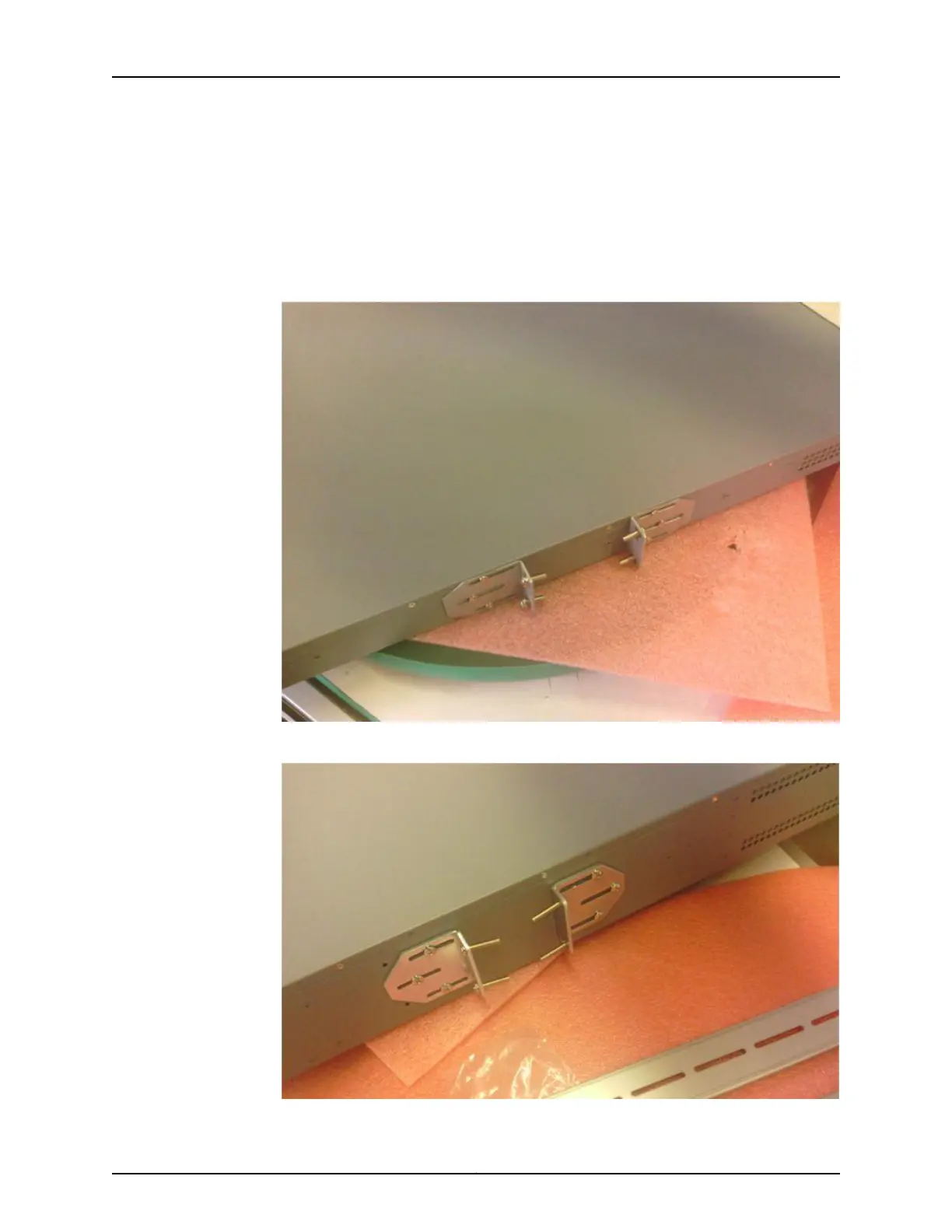

Figure 32: Mid-Mounting a 1-U MAG6610 Junos Pulse Gateway
Figure 33: Mid-Mounting a 2-U MAG6611 Junos Pulse Gateway
