To install a MAG2600 in the MAG-RK1U4mounting tray:
1. Loosen the two thumbscrews and remove the front panel from the MAG-RK1U4
mounting tray.

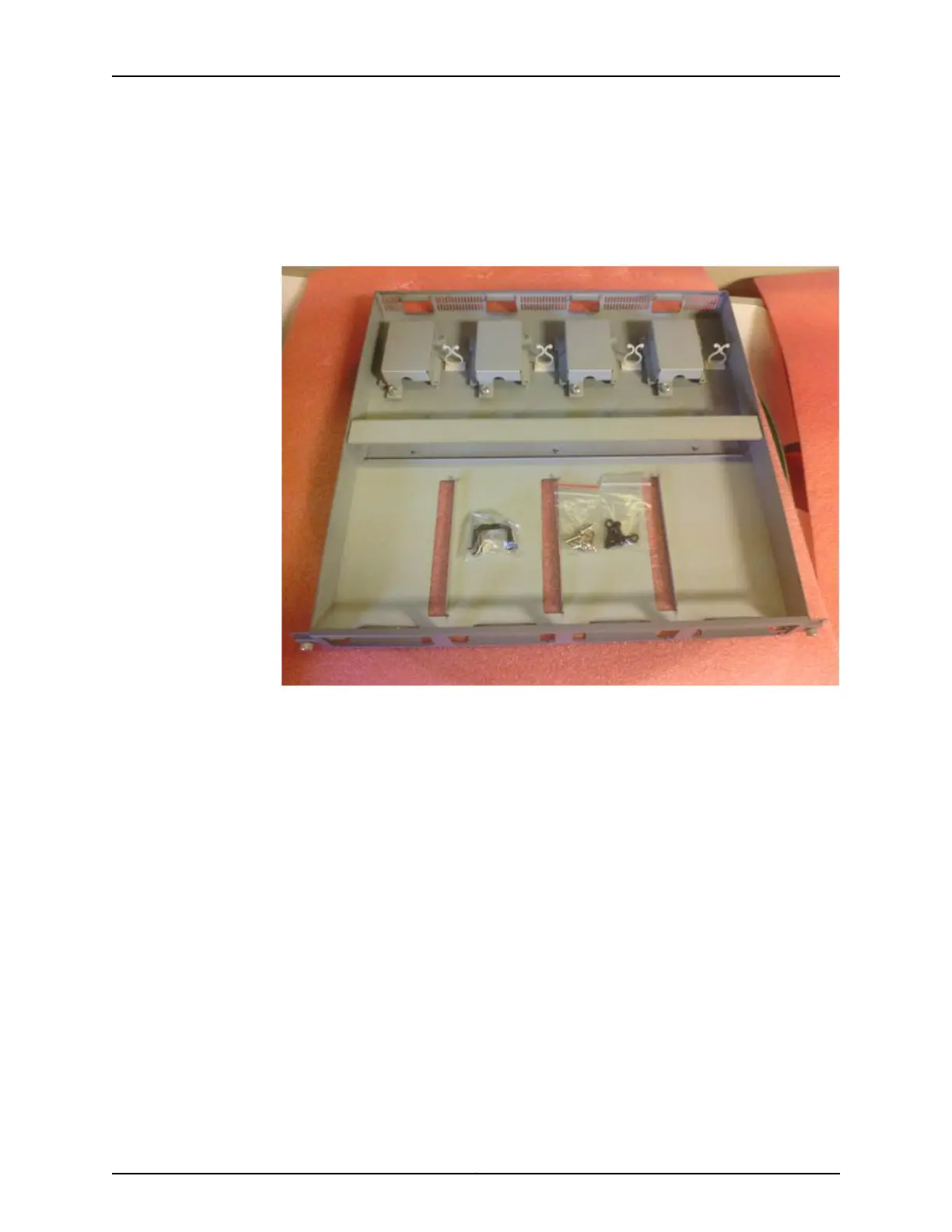

Figure 37: Removing MAG2600 Mounting Tray Front Panel
2. Loosen the thumbscrew and remove the power supply holder located directly behind
the slot where you want to place the MAG2600.
69Copyright © 2014, Juniper Networks, Inc.
Chapter 9: Installing the Junos Pulse Gateway
