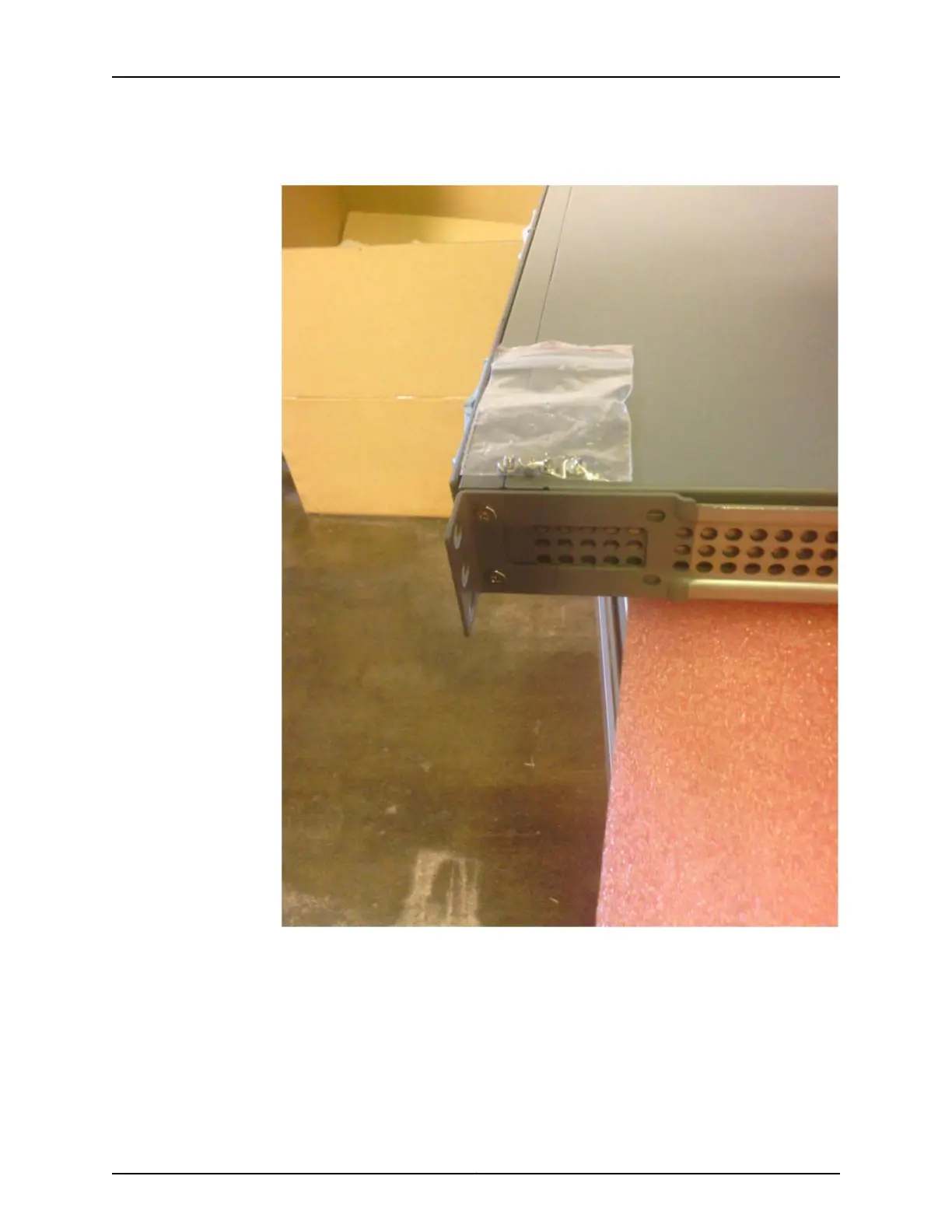

Figure 18: Installing the MAG-RK1U Front Rail
4. Secure the front rail to the front of the Junos Pulse Gateway using two of the flat-head
6-32 screws.
5. Attach the rear of the front rail using one of the flat-head M4 screws. You must use
an M4 screw to allow the rear rail to slide smoothly onto the front rail.
