Juniper Junos Pulse MAG2600 User Manual

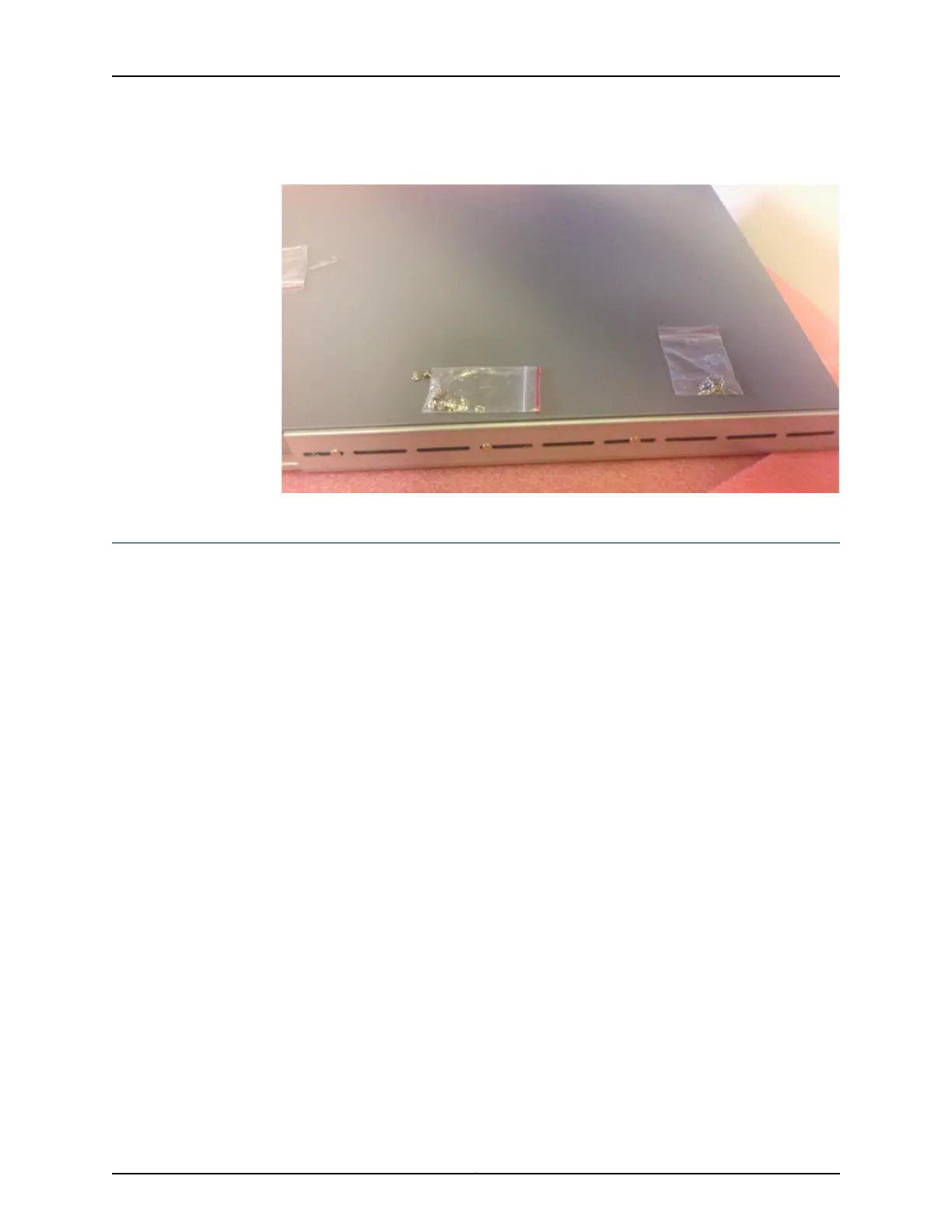

Figure 22: Securing the MAG-RK1U Rear Rails
Using the MAG-RK2U Mounting Kit
The MAG-RK2U mounting kit contains the hardware for rail-mounting your MAG6611 2-U
Junos Pulse Gateway.
The kit includes:
•
2 front rails
•
2 rear rails
•
18 round-head M4 screws
•
4 flat-head 6-32 screws
The MAG-RK2U package also includes a mid-ear mounting kit. For more information,
see “Using the Mid-Ear Mounts” on page 63.
To attach your Junos Pulse Gateway to the MAG-RK2U mounting kit:
1. Remove all contents from the packaging and separate the front rails from the rear
rails.
2. Place the Junos Pulse Gateway on a flat, stable surface.
3. Line up the gray ears on the front rails with the front of the Junos Pulse Gateway. The
two screw holes on the front side of the Junos Pulse Gateway should line up with the
front rail.
57Copyright © 2014, Juniper Networks, Inc.
Chapter 9: Installing the Junos Pulse Gateway
