Juniper MX240 - MPC Components; Figure 27: Typical MPC Supported on the MX240 Router; Figure 28: MPC Installed Horizontally in the MX240 Router

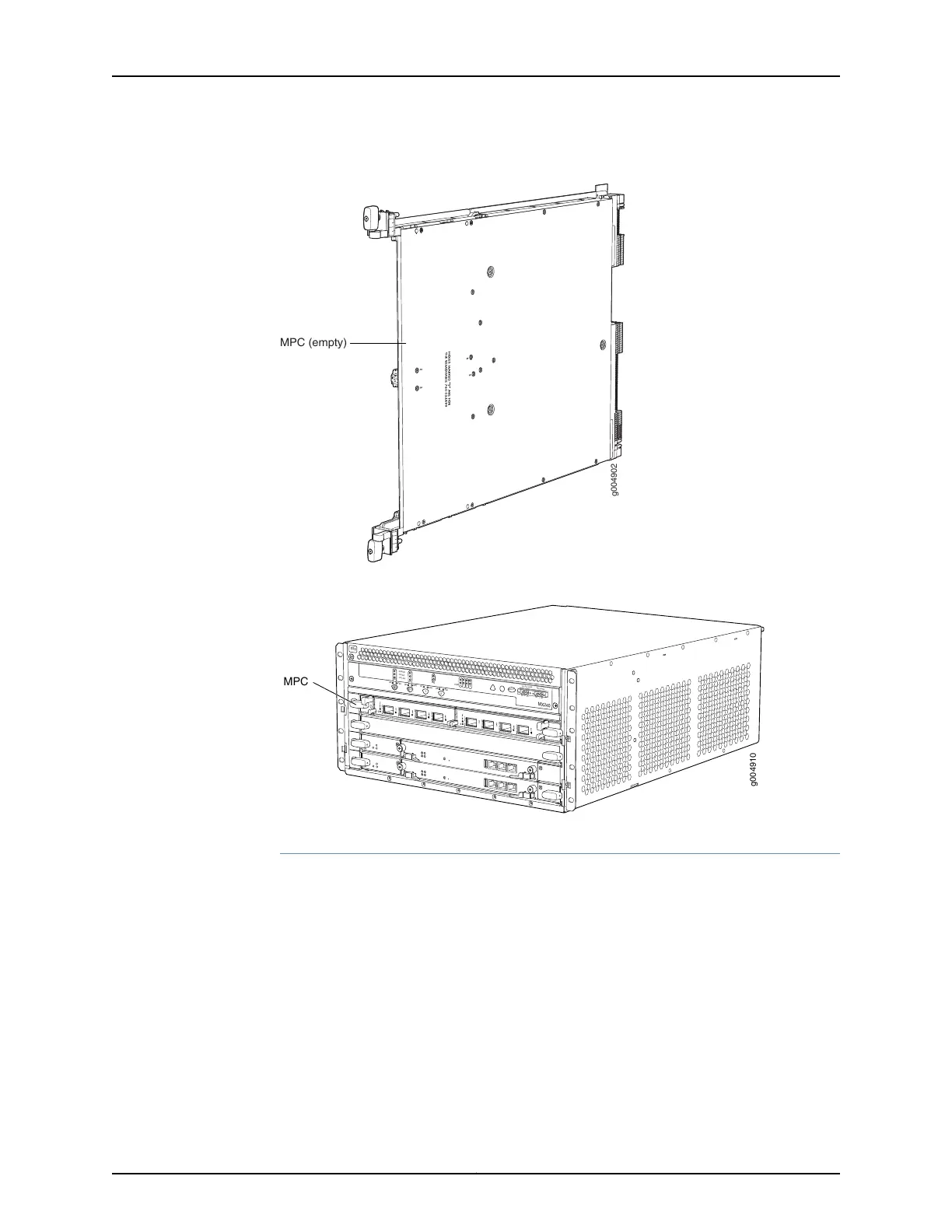

Figure 27: Typical MPC Supported on the MX240 Router
g004902
MPC (empty)
Figure 28: MPC Installed Horizontally in the MX240 Router
OK
MASTER
FAN
ONLINE
OFFLINE
0
1
0
2
1
PEM
FAIL
FAIL
FAIL
FAIL
ESD
OK
OK
OK
ACO/LT
YELLOW ALARM
RED ALARM
NC
NO
C
NC
NO
C
MX240
REO
RE1
0
1
2
3
SCB
SCB
g004910
MPC
MPC Components
Each MPC consists of the following components:
•
MPC card carrier, which includes two MIC slots (excludes the fixed configuration MPC).
•
Fabric interfaces.
•
Two Gigabit Ethernet interfaces that allow control information, route information, and
statistics to be sent between the Routing Engine and the CPU on the MPCs.
•
Two interfaces from the SCBs that enable the MPCs to be powered on and controlled.
•
Physical MPC connectors.
•
Up to four Junos Trio chipsets, which perform control functions tailored to the MPC’s
media type.
