K-TRON KCM - KCM to KSL Wiring at K-Port 1

12 Appendix
12.4KCM wiring examples
Page 102 Docu-No.: 1090020601-EN Rev. 1.2.1
12.4.3 KCM to KSL wiring at K-Port 1
• K-Port #1 is to be used only.

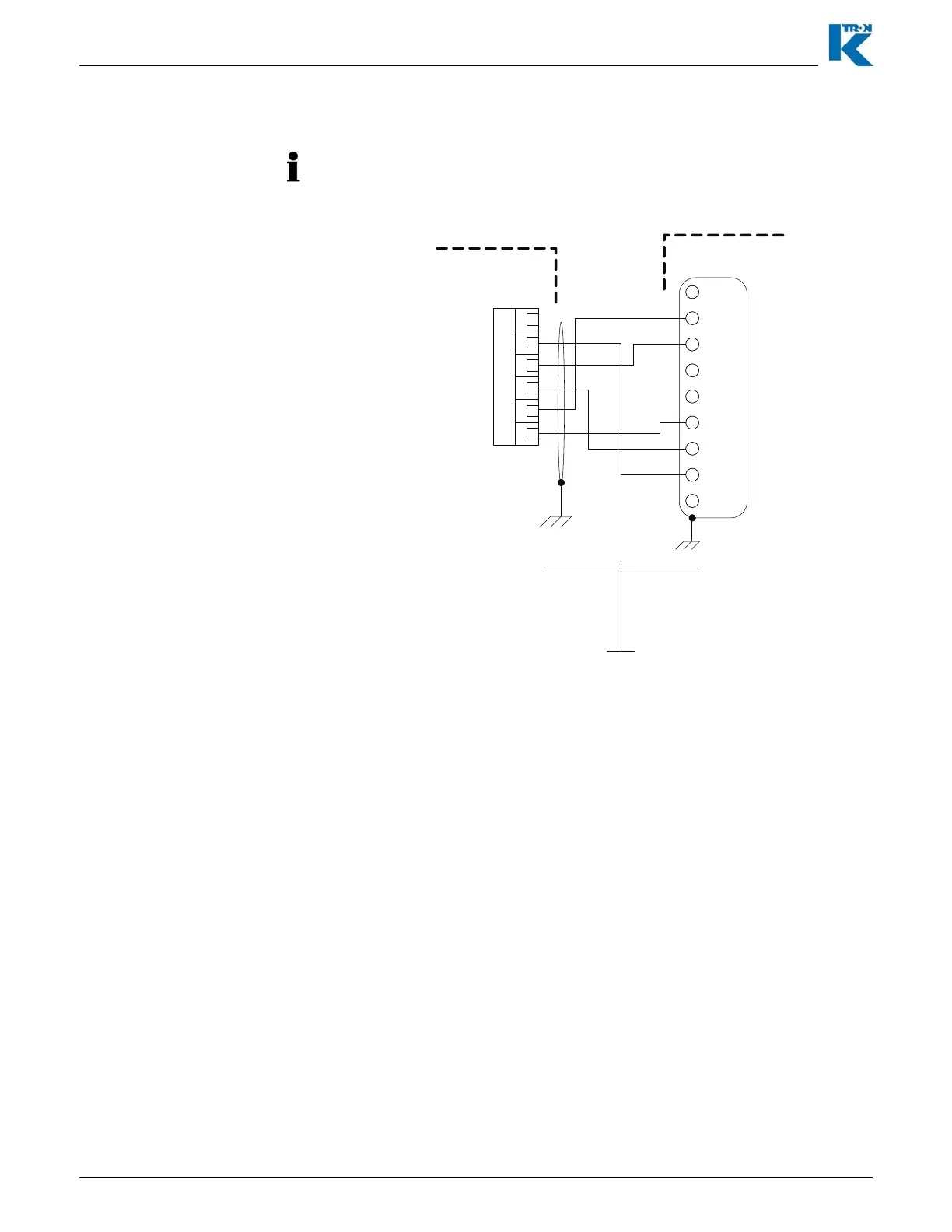

Fig. 12.2 KCM to KSL wiring
KCM
K-Port1
123456
KSL-DB-9-RS485
1
2
3
4
5
6
7
8
9
COM
Rx+
Tx+
Rx-
Tx-
Vcc
Rx+
Rx-
Tx+
Tx-
COM
KCM K-Port KSL DB-9
2
3
4
5
6
8
3
7
2
6
J14
