K-TRON KCM - Terminal Descriptions and Keying Diagrams

Docu-No.: 1090020601-EN Rev. 1.2.1 Page 31
Installation 4
Terminal descriptions 4.6
4.6 Terminal descriptions
4.6.1 Terminal block specifications
Each terminal block is made up of two components; a
removable plug and stationary socket. Each is keyed with plastic
keys to prevent misconnection and all are unique. Both the
socket and plug are keyed as necessary
4.6.2 Keying diagrams for specified connectors
Specification
Ratings and limitations
Maximum wire size 2.5 mm
2
or 12 AWG max. according to regulations in your country.
Minimum wire size 24 AWG or 0.2 mm
2
Maximum rated contact current 12 A
Maximum rated contact voltage 250V
Maximum screw terminal torque 0.5 Nm

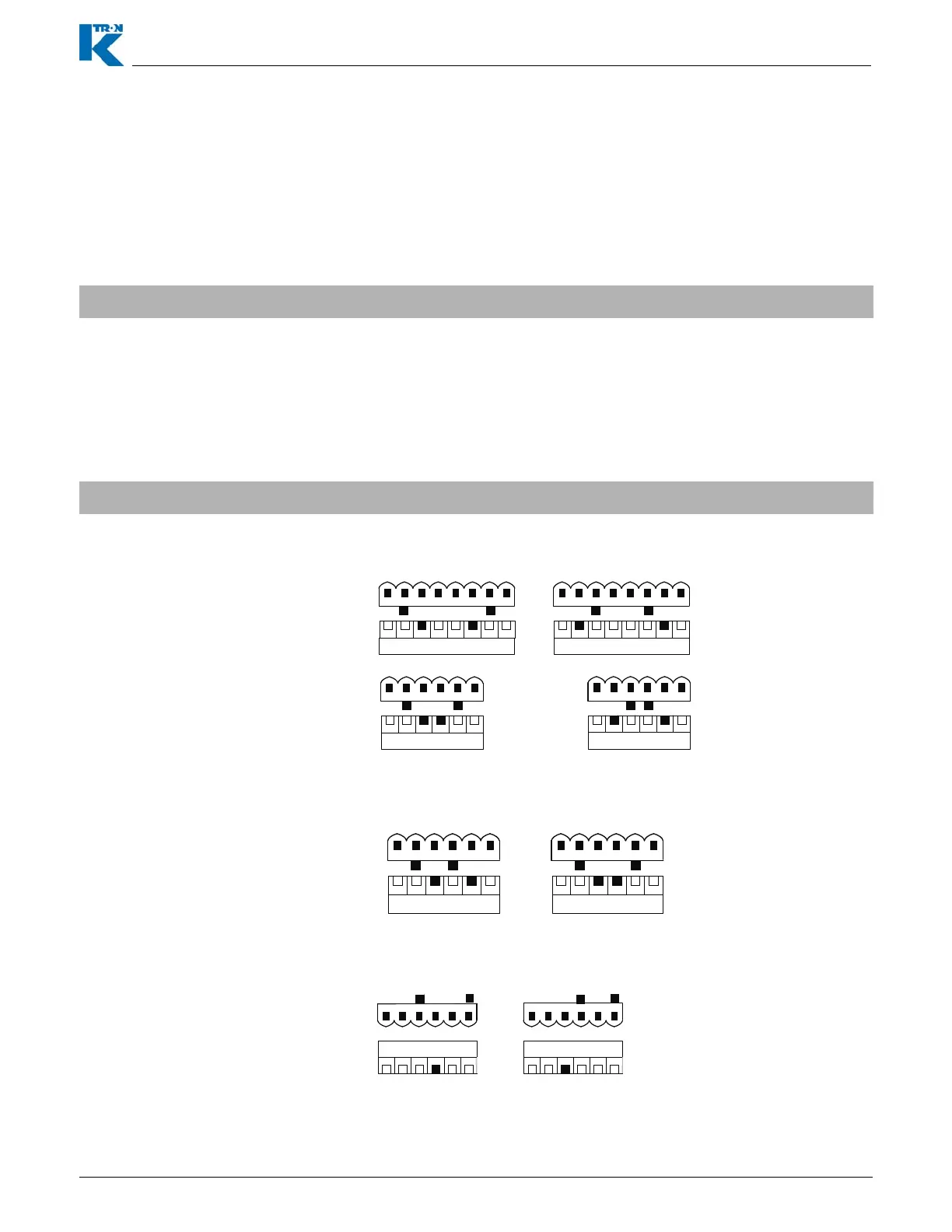

Fig. 4.4 Power pc board keying diagram
Fig. 4.5 KCM cpu keying diagram
Fig. 4.6 K-Port keying diagram
6 5 4 3 2 1
J3
6
1
6 5 4 3 2 1
J6
8 7 6 5 4 3 2 1
81
8 7 6 5 4 3 2 1
J5
81
J4
6
1
J7
J8
6 5 4 3 2 1
J9
6 5 4 3 2 1
6
1
6 5 4 3 2 1 6 5 4 3 2 1
J11
6
1
6 5 4 3 2 1
1 2 3 4 5 6
J15
1 2 3 4 5 6
J14
1
1
