K-TRON KCM - KCM Without SIB Board - DC Motor - 0000002610

12 Appendix
12.4KCM wiring examples
Page 110 Docu-No.: 1090020601-EN Rev. 1.2.1
12.4.11 KCM without SIB board - dc motor - 0000002610

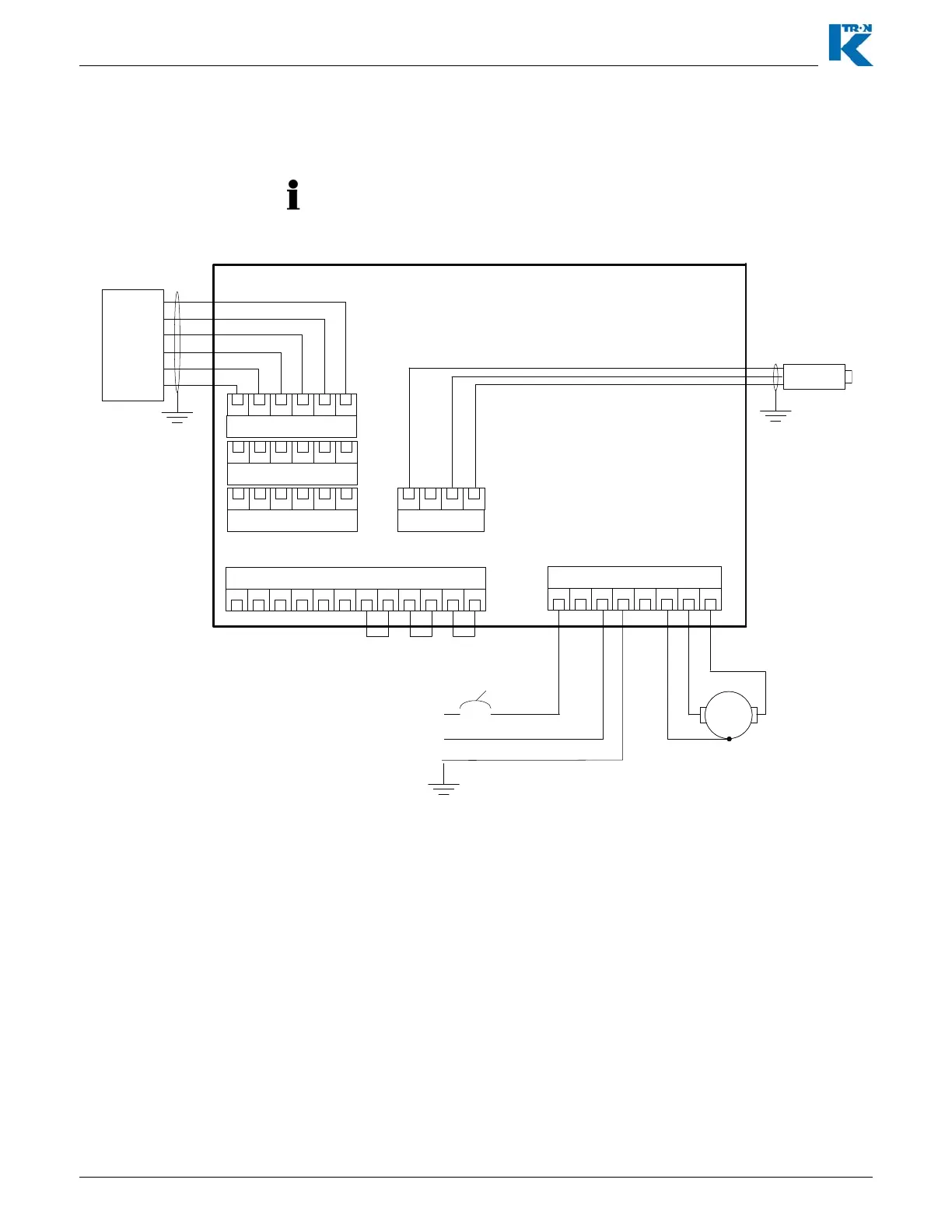

Typical system wiring diagram with a feeder mounted KCM.
• Not all terminal blocks are shown in this example.
Fig. 12.10Feeder mounted KCM wiring example - 1600 W DC Drive
Speed
Sensor
J1
12 11 10 9 8 7 6 5 4 3 2 1
K4
DPDT
J8
J7
J4
6 5 4 3 2 1
6 5 4 3 2 1
6 5 4 3 2 1
SFT
SafetyDrive Enable
Blue
Yellow
Red
Gray
Pink
Yellow
Green
White
Brown
KCM
1600 W DC Drive
4 3 2 1
J2
+5Vdc
Com
Sig
J6
L1 PEN PE Mtr
+
Mtr
-
Vac line in
DC Motor
8 7 6 5 4 3 2 1
