K-TRON KCM - KCM Dimensions

Docu-No.: 1090020601-EN Rev. 1.2.1 Page 29
Installation 4
Dimensions KCM 4.3
4.3 Dimensions KCM
Notes:
• Slot A holds a M6 hex head bolt.
• Use 8 bolts per KCM for secure mounting.
• Cable gland hole sizes are:
– 12 x M16x1.5 mm
– 4 x M20x1.5 mm

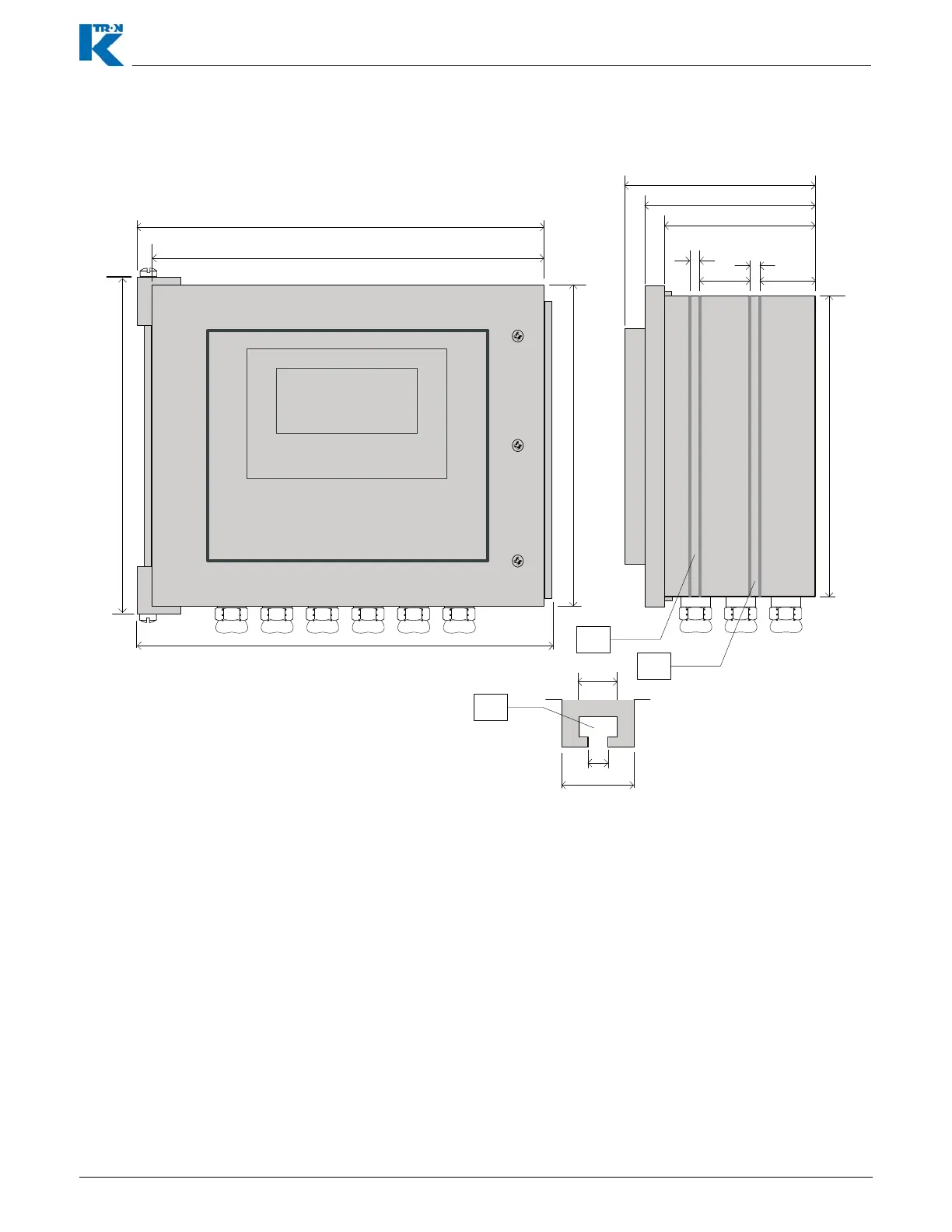

Fig. 4.1 Dimensions - in mm
305
295
252265
311.5
KCM
43.326.7
18.3
132
122
153.6
233
A
A
18.3
B
A
10.29
6.24
18.3
