5 KCM Set-Up
5.7 GWB Application drive set-up
Page 66 Docu-No.: 1090020601-EN Rev. 1.2.1
5.7 GWB Application drive set-up
For operating and programming see project manual.

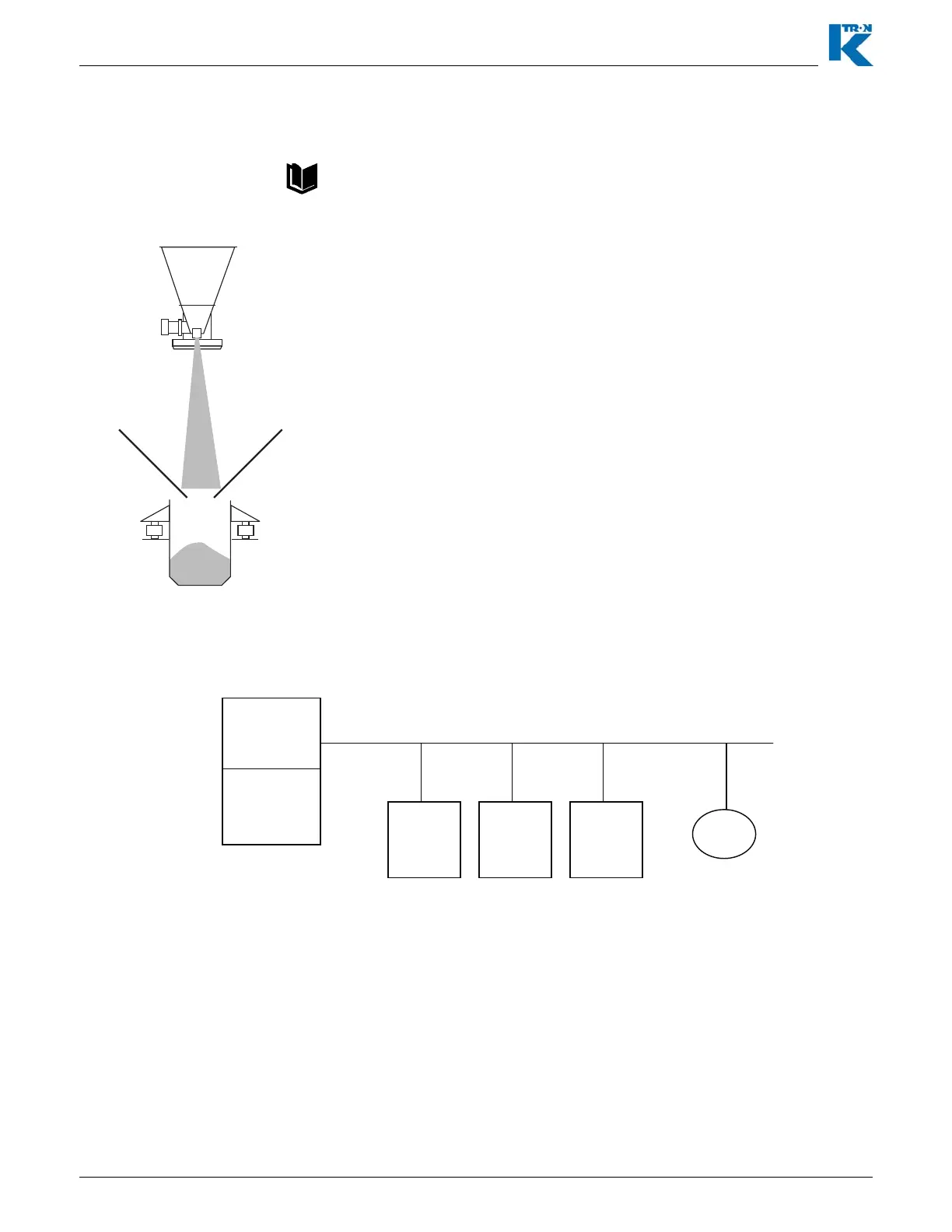

Fig. 5.3 GWB Mode
The GWB (gain-in-weight batching) mode allows up to 8 feeders to fill
batches into one container in sequence. The increase in weight in the
collector container is measured. The weight information from the scale
is used to control the feeders.
5.7.1 GWB Hardware overview
Each ingredient feeder requires a KCM Drive board. All KCM Drive
boards are usable:
– 450 watt DC motor drive
– 1600 watt DC motor drive
– Stepper motor drive
– Vibratory drive
– AC Interface.
Each motor drive board must be uniquely addressed from 1 to 8.
Fig. 5.4 KCM GWB Overview
KCM
CPU
SFT
Motor
Drive
2
Motor
Drive3
Motor
Drive4
Motor
Drive
1
