9 Maintenance
9.3 KCM fuse replacement
Page 78 Docu-No.: 1090020601-EN Rev. 1.2.1
9.3.8 AC motor drive interface fuse location-000003413
9.3.9 Stepper drive interface fuse location-0000005987
Following fuses are (5x20 mm, slow-blow) used:
F1/F2-6.3AT, 5x20 mm, 250Vac fuse.

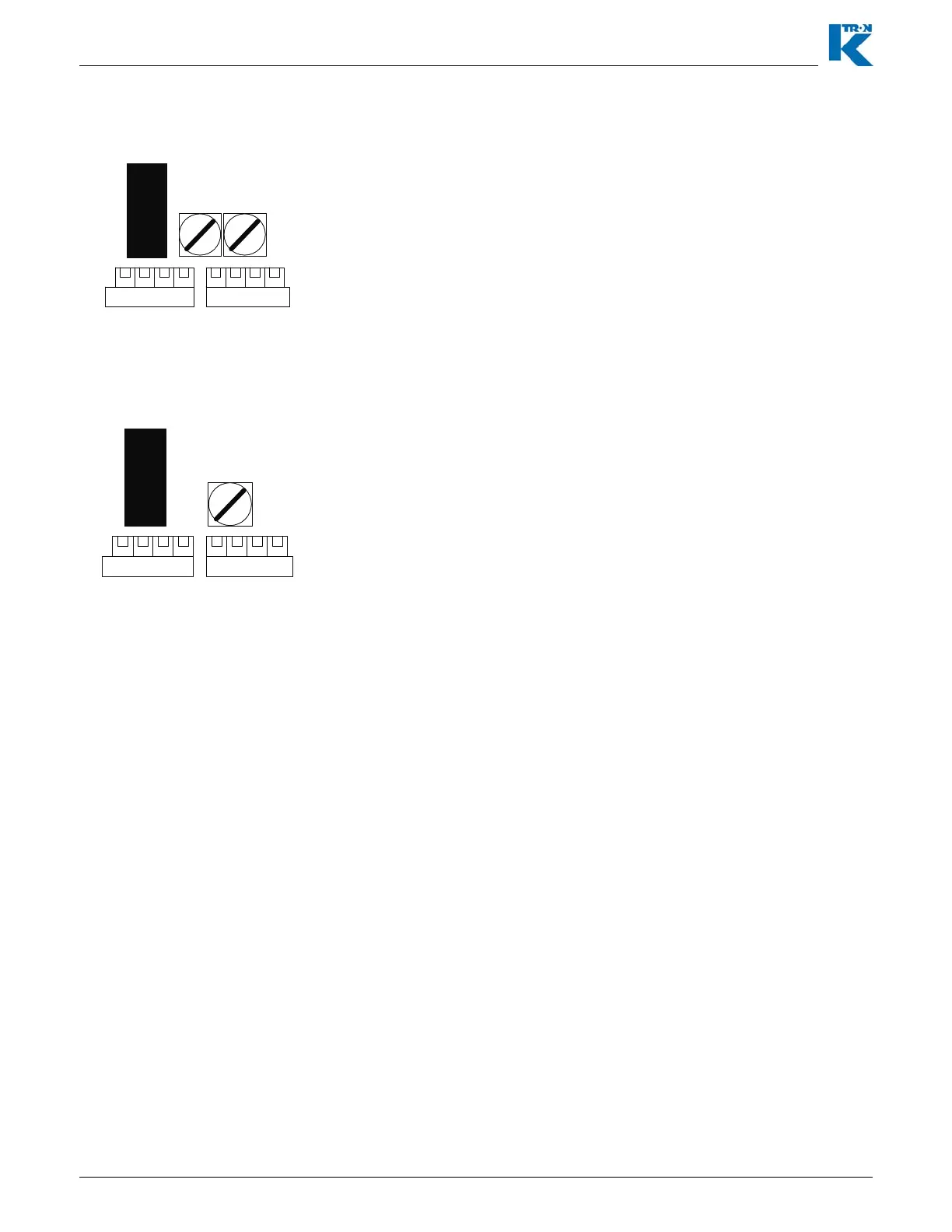

Fig. 9.4 Fuse location, AC interface
J6J5
F1 F2
K1
SPDT
Following fuses are (5x20 mm, slow-blow) used:
F4-2.0AT, 5x20 mm, 250Vac fuse.
.
Note:
The HiPo and LoPo stepper have no replaceable fuses.
Fig. 9.5 Fuse location, Stepper Drive
J6J5
K1
SPDT
F4
