10.3 KCM Drive and Power Supply Details
There are a series of drive circuit boards used for a variety of drive
application. A listing is below.
Note:
• The 0000005987 stepper drive replaces both the LoPo and HiPo
stepper drive when available.
10.3.1 Drive board LEDS

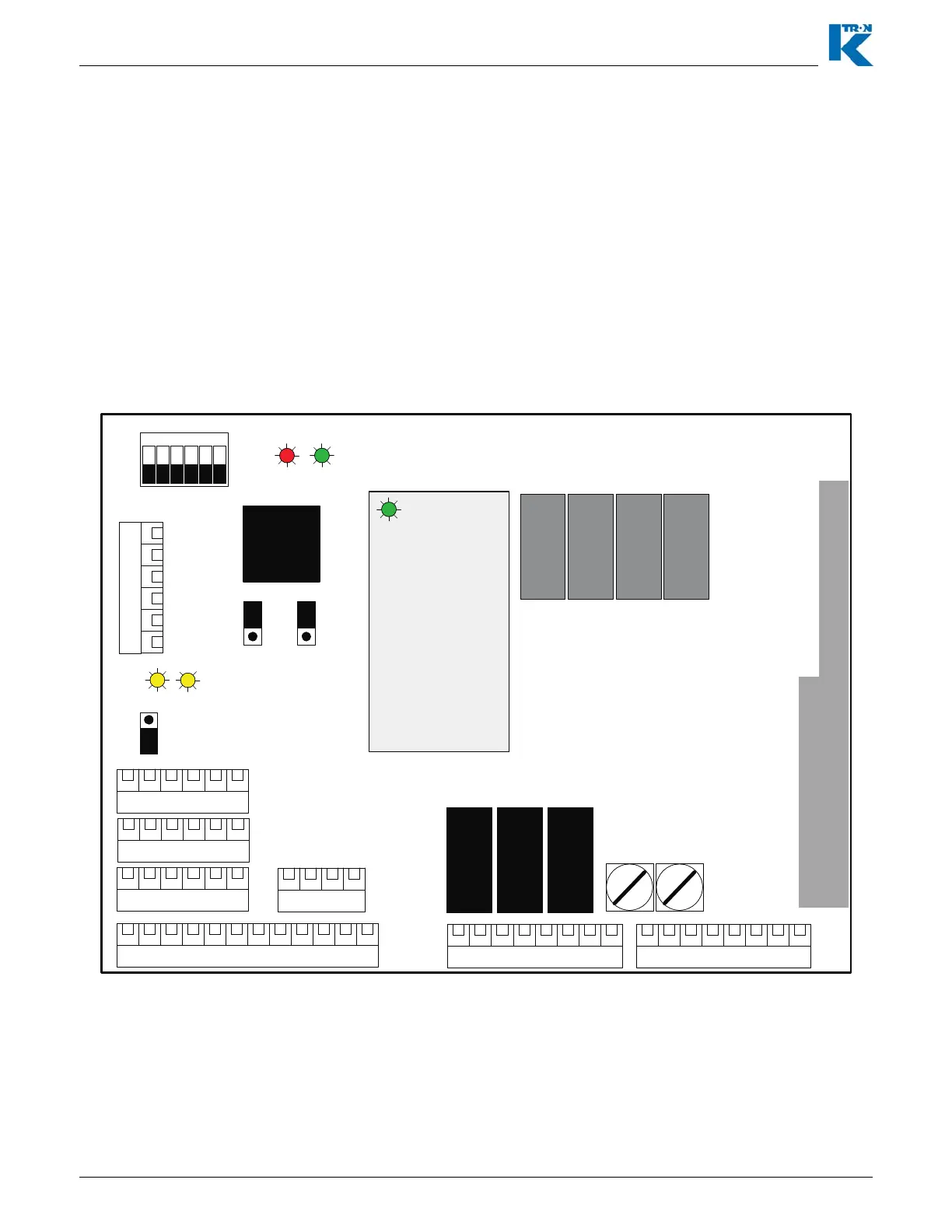

The next image is the 1600 watt DC motor drive showing LED
positions. Other drives will have the LEDs in different locations.
Please be careful.
Fig. 10.2 1600 watt DC drive LED locations-0000002610
