K-TRON KCM - Shielding and Cable Glands

Docu-No.: 1090020601-EN Rev. 1.2.1 Page 55
Installation 4
Power wiring; specific requirements 4.13
4.13.4 Shielding and cable glands
▲ For operation in the allowed hazardous zone, only use certified
explosion-proof cable glands and blind covers ATEX category
2GD on the KCM.
 Connect the shields of all cable connections to low-impedance
equi-potential bonding (
< 0.1 ohm) via the cable glands on both
sides.
 Lay the shielding (1) evenly over the O-ring (2).
 If the KCM SS used in conjunction with the Hygiene mounting
must be read the instructions in section 4.5.

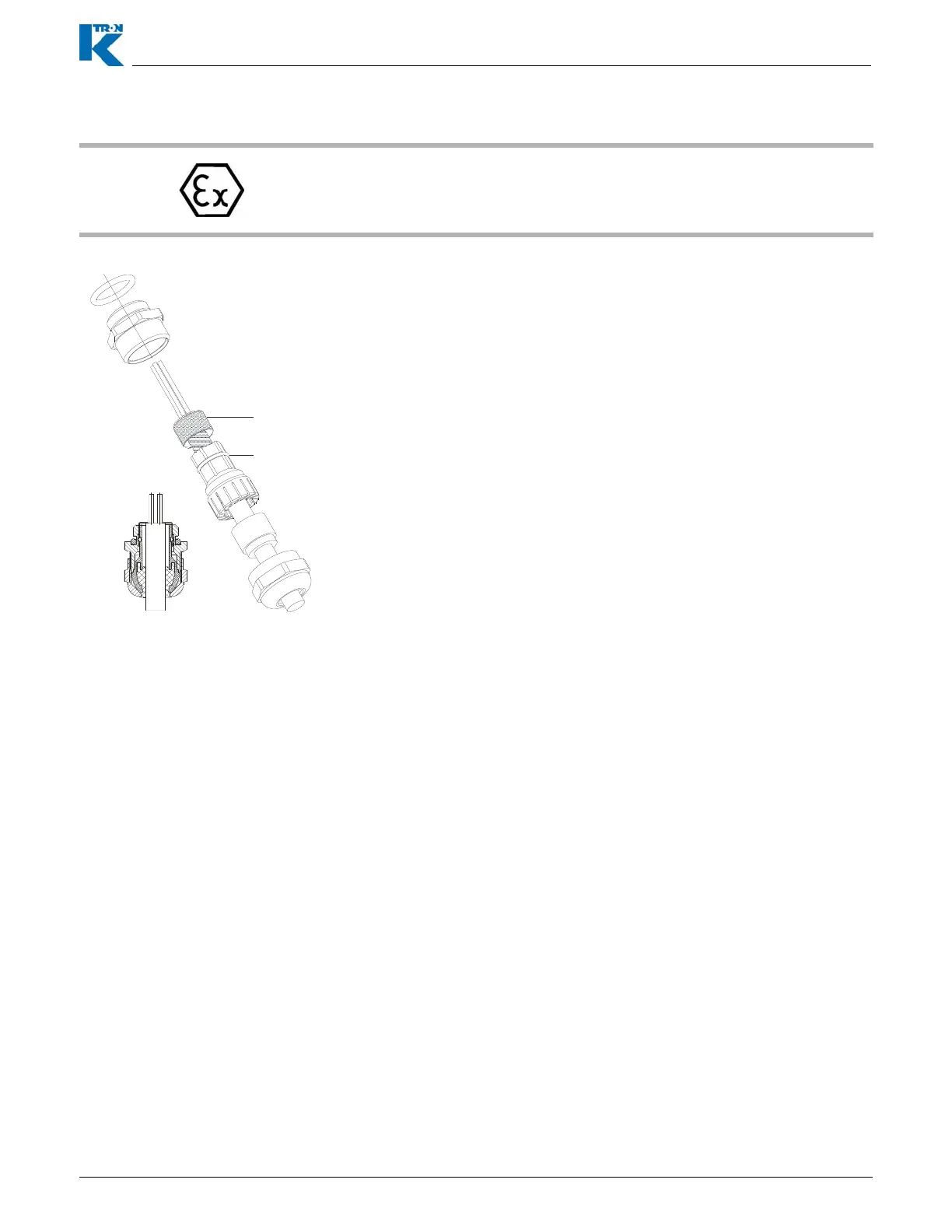

Fig. 4.19 Cable gland shielding
2
1
