SFT expander circuit card 11.4
11.4 SFT expander circuit card
11.5 Daisy chain connector
The SFT expander circuit card (part number 0000003411) is used
only with the 450 watt dc drive when more than one SFT is to be
connected. The expander card plugs into J4 of the 450 watt dc drive
card. The expander card mounts into the KCM housing and provides
three SFT connections as shown.

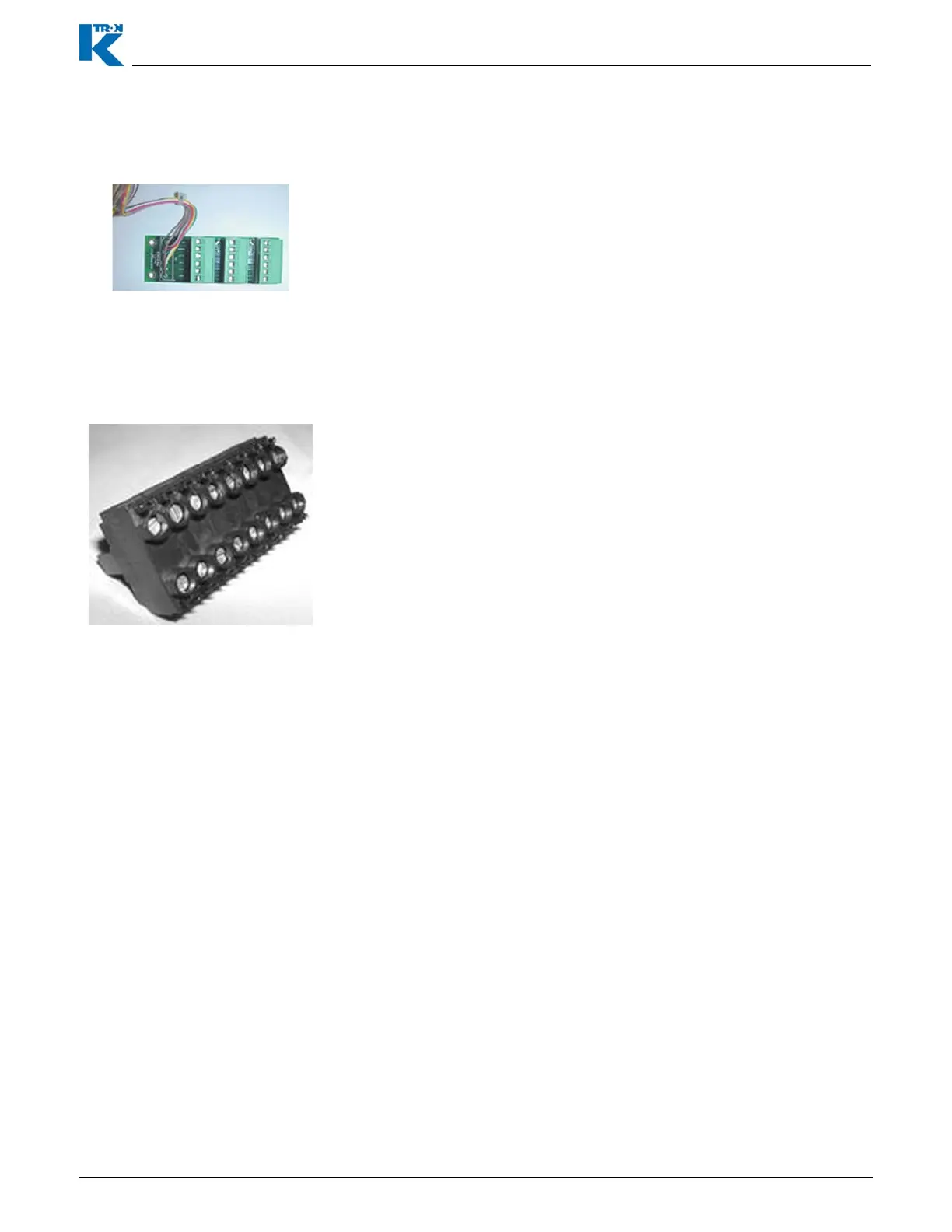

Fig. 11.3 SFT Expander
The daisy chain connector permits easy cabling of K-Net connections
from one KCM to another without having to have 2 wires in any
terminal. point. This connector plugs into either K-Port 1 or K-Port 2.
Fig. 11.4 Daisy chain connector
