If Lsin and Rsin are the data sheet values for one phase of
the filter, then the concatenated (UV) value must be entered
in dr49 and dr51 according to the adjacent formula.
Example: The inductance Lsin is 0.2 mH per phase
=> then dr49 = 0.4 mH must be parameterized.
If C is the capacitance value in the data sheet for one
phase of the filter, Csin can be determined according to the
formulas listed below.
The phase-to-phase capacity of the sinus filter must be en-
tered in dr50 (phase-to-phase value UV) = Csin/2.
Note: Parameter dr52 is still visible with a lower resolution
for compatibility reasons, if it is not equal to ZERO, this
value is used internally.

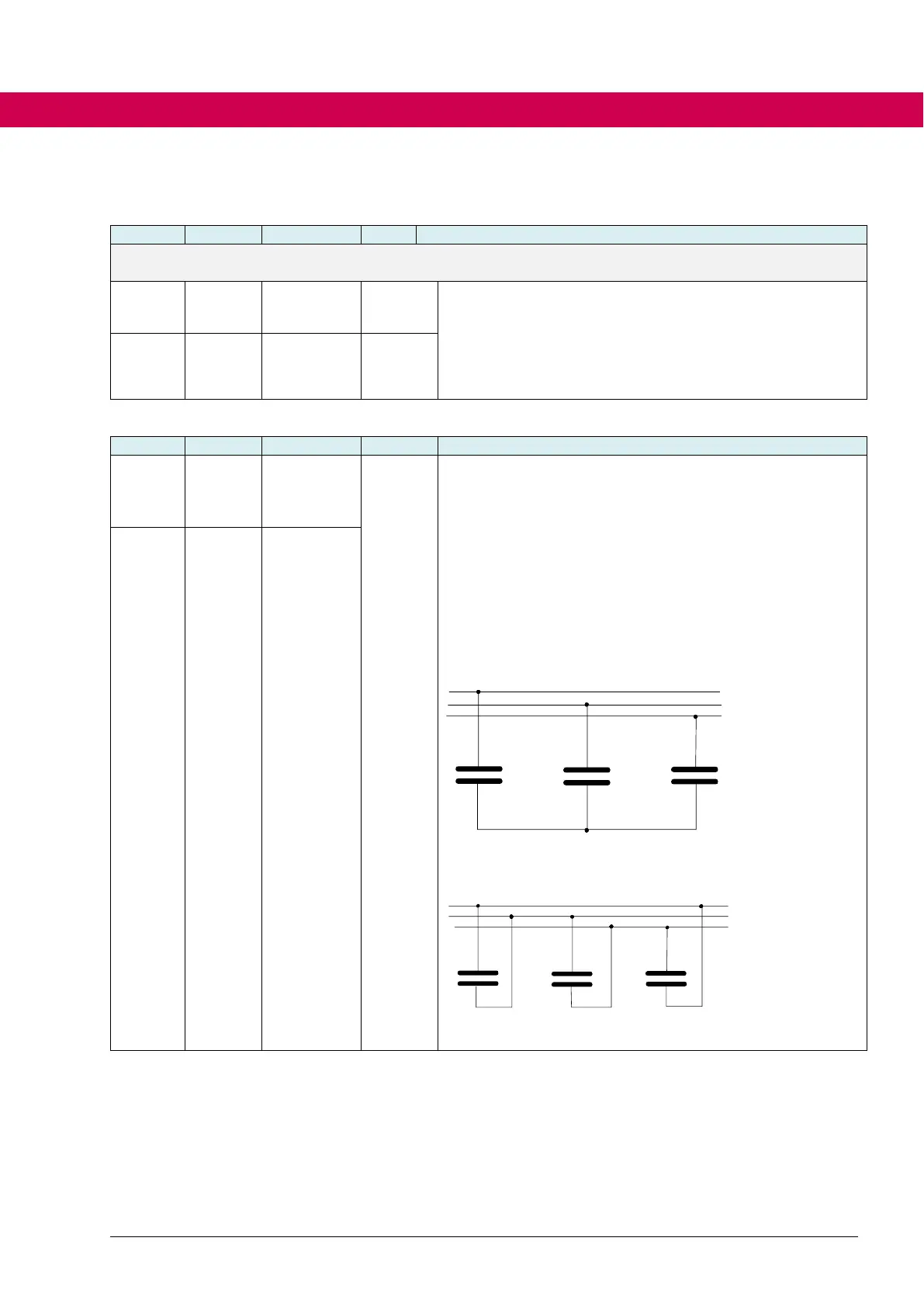

Star connection:
Delta connection:
