Protection functions

The continuous current (ID) is speed-dependent:

Id:

Id0:

continuous current

standstill current (dr34 * dr03)

rated current (rated current / dr03)

rated speed (rated speed / dr04)

1fghfh

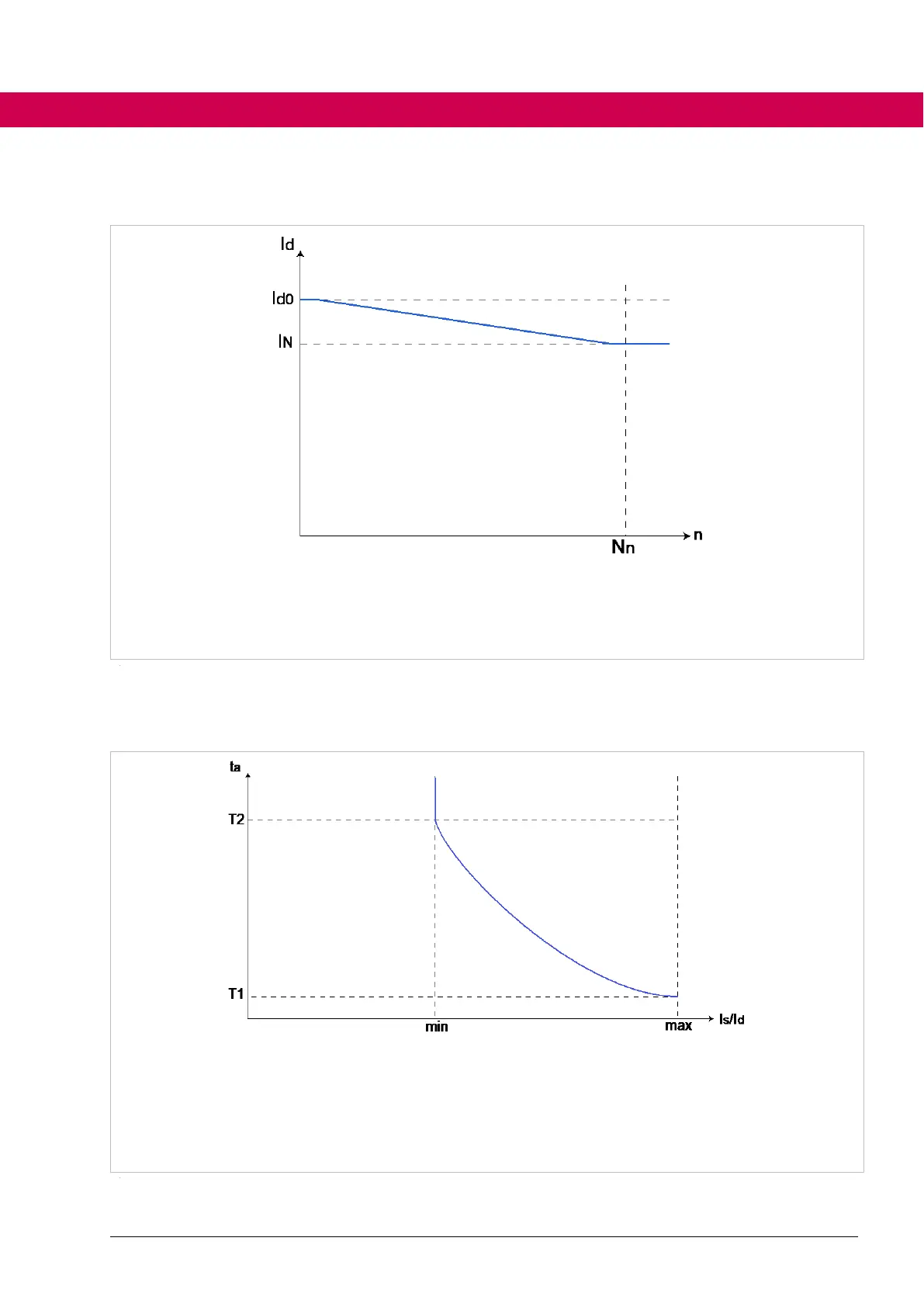

Figure 13: Dependence of the motor protection function

The tripping time (ta) is determined by the ratio Is/Id:

Ta:

Is/Id:

T2:

T1:

Min:

Max:

tripping time

apparent current/ continuous current [%]

dr35 (SM prot time min Is/Id)

dr36 (SM prot time Imax)

dr38 (SM prot min Is/Id)

dr12 (max current %)

1fghfh

Figure 14: Dependence of the tripping time
