KEB COMBIVERT F6 Programming Manual

Operating modes
172
© 2022 KEB Automation KG
Operating mode 10: Cyclic synchronous torque mode
4.8.7.1 General description
In cyclic sync torque mode, new set torque settings are transferred to the drive
controller by a higher-level control with each bus cycle. The Drive Controller does
not calculate any acceleration or deceleration ramps, it only follows the torque set-
tings from the control. The target torque is transmitted via the process data channel
(PDO).
Torque control is not possible in v/f operation.
2
1
1fghfh
1

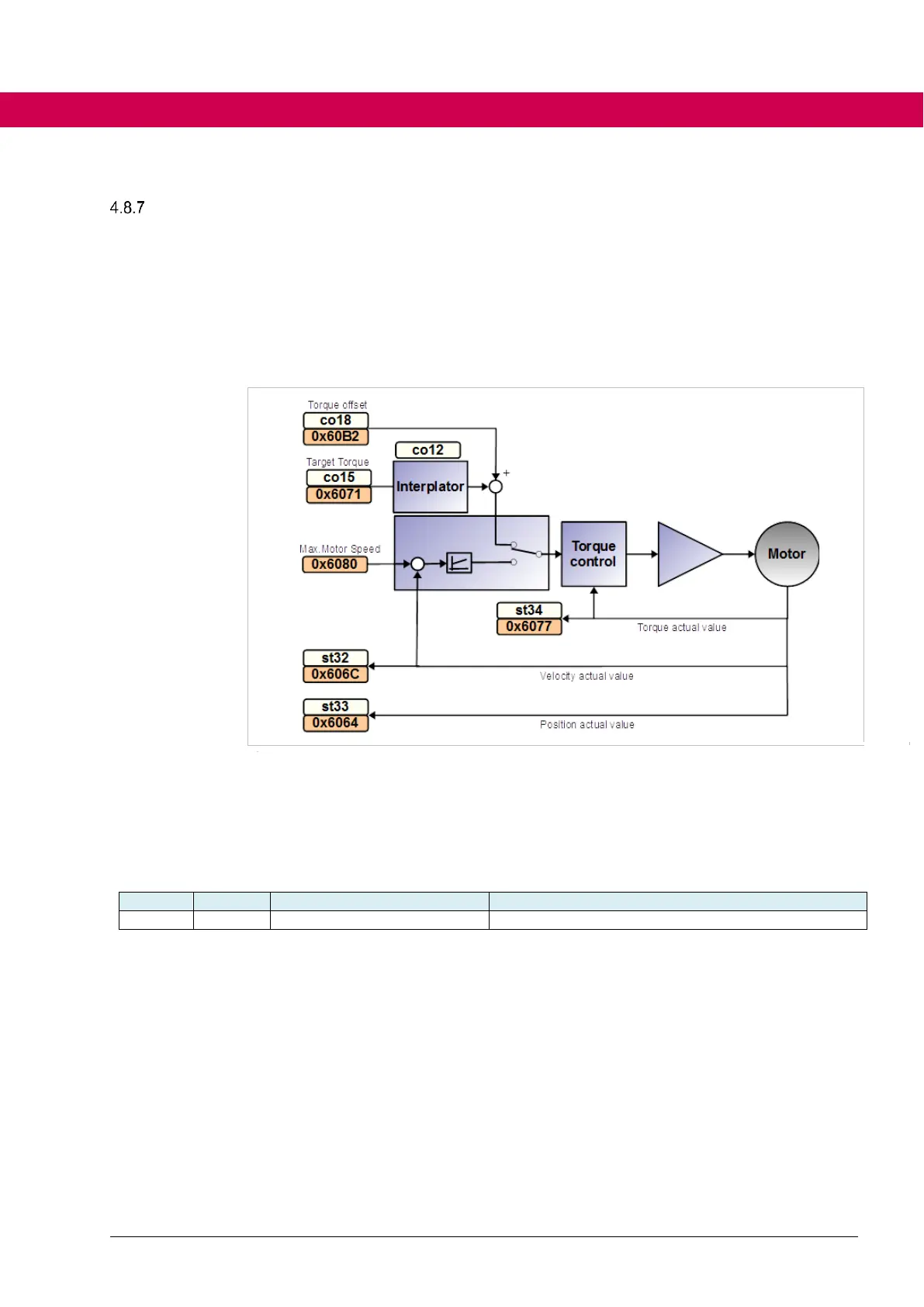

Figure 55: Cyclic synchronous torque mode - Overview
4.8.7.2 Interpolator
The setpoint is interpolated to the cycle time of the internal control grid. The used
method can be selected via the object co12.
Index
Id-Text
Name
Function
0x250C
co12
torque interpolator
Interpolation of the torque setpoint
